Case IH JX-MX-MXM Series LED Left-Hand Rear Amber Corner/Red Tail Light

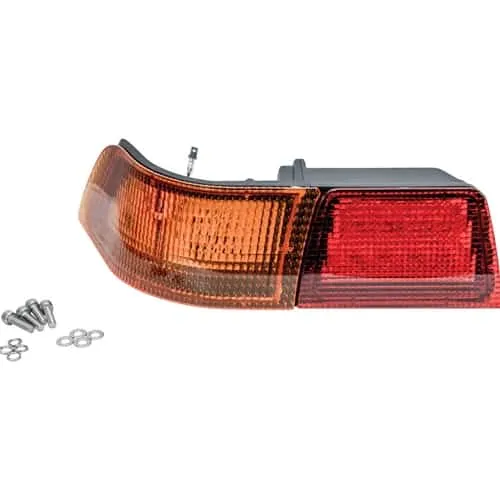

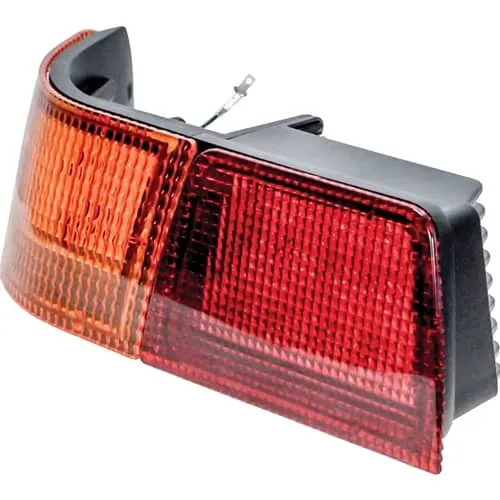

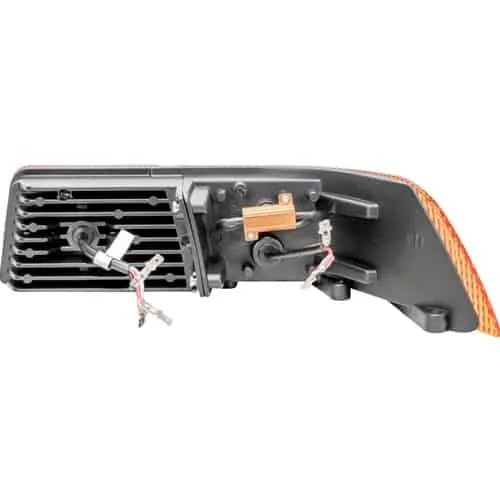

LED Light for direct replacement, Plug & Play. Light will bolt right into factory light housing. This light is the rear left tail light, amber corner with red tail light. The light has a built in resistor to work with original factory flasher.
Replaces Case/IH Part Number: 357541A1
Amber Light Information
Watts: 17W + 12W Resistor
Amps: 2.4
Features:
- IP67 Waterproof
- EMC CISPR 25 Class 4
- E-mark, ECE R10, RoHS
Spefications
Applications
Spefications
| Description | Left LED Tail Light | Wattage | 30(Red Light) |
| Dimensions(WxHxD) | Voltage | 10-30V DC | |
| Lumens | 3000(Red Light) | Light Pattern | Red flashing/Flood Beam |
| Amps | 3.3 | Warranty | 2 Years |
- Plug and play
- Direct replacement
- Light will bolt right into factory light housing
- Rear left tail light, amber corner with red work light
- The light has a built in resistor to work with original factory flasher
- Amber Light Information; Watts: 17W + 12W Resistor and Amps: 2.4
Applications
Case IH® JX, MX Series Magnum and MXM Series Maxxum Tractors:
- JX Series: JX70U, JX80U, JX90U, JX100U
- MX Series Magnum: MX210, MX230, MX255, MX285
- MXM Series Maxxum: MXM120, MXM130, MXM140, MXM155, MXM175, MXM190, MXU100, MXU110, MXU115, MXU125, MXU135
Replaces Case IH ® Part Number: 357541A1
Case® Backhoe Loaders: 580M, 580 SM, 580 SM Plus, 590 SM, 590 SM Plus
