Forklift Safety Lights

Our forklift safety lights cover 10 LED warning and zone-marking models we manufacture in-house: blue, red and green safety spots, red zone lines, arch (halo) and arrow beams, amber strobe beacons, and a sealed 92 W combination headlight for lift trucks working outdoors or in dark trailers. The pedestrian-warning models are offered in four voltage versions — 9–32 V, 10–48 V, 10–60 V and 10–110 V DC — so one light family covers 12 V IC counterbalance trucks, 48 V electrics and 80 V reach trucks without a converter, and every housing is sealed to IP69K for cold stores and wash-down bays.

We supply forklift dealers, material-handling distributors, safety-equipment suppliers and fleet EHS teams. The sections below explain which beam shape goes where, which voltage version a truck needs, and how to trial a configuration before a fleet order.

How to choose the right forklift safety light

Beam shape and colour, projection distance, and electrical system — these three decisions matter most when specifying forklift warning lights for a lift-truck fleet:

• Beam shape and colour — A blue spot projects a moving dot on the floor ahead of or behind the truck to warn pedestrians before it rounds a blind corner; a red line or halo marks a keep-out boundary alongside the mast and the rear swing, exactly where crush injuries happen; green replaces blue in brightly lit or outdoor areas.
• Projection distance and mounting height — Safety lights mount on the overhead guard, and the higher the point and the shallower the angle, the further the mark is thrown. A blue spot is typically set to land 3–6 m ahead so it reaches an aisle intersection before the truck does; a red zone line is typically set 0.6–1.5 m out from each side. Aim on the truck, not on paper.
• Electrical system — Choose the voltage version that matches the truck battery (see below). All versions use potted drivers, so the voltage dips of lifting and constant chassis vibration do not shorten service life.

Beam shapes and colours: spot, line, halo, arrow, strobe

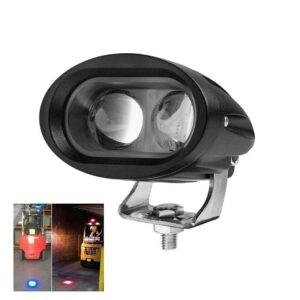

• Blue spot — the approach warning. Mounted front and/or rear of the overhead guard, it is the pattern pedestrians notice at racking ends and intersections; the moving dot is the whole point.

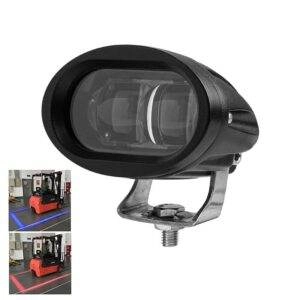

• Red zone line — the keep-out boundary. Mounted on both sides of the overhead guard, it draws a straight red line along the truck at the distance you set; fit two, one per side.

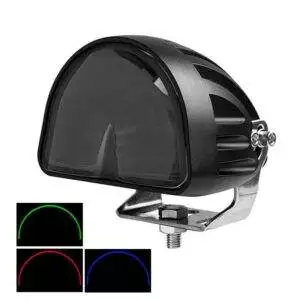

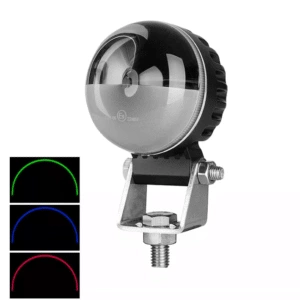

• Halo (arch) beam — a curved red or blue line that wraps the rear swing radius, sold in the trade as a halo light or arc light; our 3 inch and 5 inch arch-beam models cover narrow-aisle and counterbalance trucks.

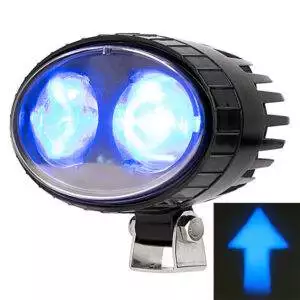

• Arrow beam — a blue arrow pointing in the direction of travel, readable at a glance at busy intersections; also used as a blue reversing light on the 5.5 inch 45 W model.
• Green spot — for daylight yards, dock doors and brightly lit areas where a blue dot washes out; same housings and voltage versions as the blue and red spots.

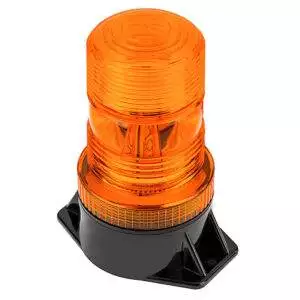

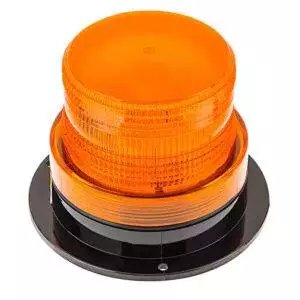

• Amber strobe beacon — 360° visibility on the top of the overhead guard for yards, docks and low-light areas; the 3-3/4 inch and 5-1/4 inch beacons share the four voltage versions.
• Combination headlight — the 92 W high/low unit for trucks that work outdoors, on ramps and inside dark trailers, where OSHA 1910.178(h)(2) calls for auxiliary directional lighting.

Pedestrian warning lights themselves are not mandated by OSHA, but they have become standard practice on busy sites; our forklift blue light vs red zone guide covers what the regulation actually requires and how sites combine the patterns.

Where each light goes on the truck

The overhead guard carries most of the warning lighting, and each position answers a different risk.

Rear of the overhead guard — the blue spot or arrow beam, projecting ahead of the reversing truck so anyone at a blind corner sees the truck before the truck reaches them.

Both sides of the overhead guard — red line or halo beams, drawing the keep-out boundary on the floor beside and behind the truck.

Top of the overhead guard — the amber beacon, for 360° presence in aisles and on shared yard routes.

Front of the mast or overhead guard — the combination headlight, for trucks that leave the building or work in low ambient light.

Which of these a truck actually needs is a site decision, not a fixed list — see the question on how many lights a forklift needs, below, and our forklift blue light vs red zone light guide for choosing between the two floor patterns.

Which voltage version for which forklift

• 9–32 V DC — 12 V and 24 V systems: IC counterbalance trucks, pallet trucks and small electric stackers.
• 10–48 V DC and 10–60 V DC — 36 V and 48 V electric counterbalance and reach trucks, the most common warehouse fleets.
• 10–110 V DC — 72 V and 80 V electric trucks and heavy reach trucks; the version most suppliers do not offer, so one range can serve a mixed fleet without step-down converters.

Blue spot or red zone line?

The two patterns answer different risks, and most sites end up running both. The blue spot warns of an approaching truck long before it is heard; the red line or halo tells people how close is too close while pallets are lifted. Indoors, glare control matters as much as brightness — the optics in this range put a crisp mark on the floor instead of scattering light into the eyes of operators and pickers. For outdoor yards, add the amber strobe on top.

Built for warehouse duty cycles

A warehouse truck can run multiple shifts a day, passing from cold-store condensation to wash-down bays to dusty yard ramps. Every light here uses a sealed IP69K housing, solid-state LEDs with no filament to fail, potted electronics that absorb continuous mast and chassis vibration, and stainless-steel brackets that survive knocks from pallets and racking. Our IP69K vs IP68 guide explains why the higher rating matters in cold storage.

Wholesale supply for forklift dealers and safety distributors

We manufacture forklift safety lights for OEM brands, forklift dealers, and material-handling and safety-equipment distributors worldwide. Standard MOQ is 60 pieces per model, mixed across blue, red, green, halo, arrow and strobe models in one order, with 15–25 working day lead times; samples of 1–5 units let your safety team trial a configuration on real trucks first. Private-label branding, custom connectors and cable lengths are available, and certification documentation for your market is available on request. Warranty terms are listed on each product page. Tell us the fleet mix — truck types, battery voltages and facility layout — and we will propose a configuration; see also our warehouse and forklift application page.

For yard and dock work the same trucks carry an amber roof beacon; see our LED beacon and warning lights range, which covers electric-forklift voltages.

Beyond the catalogue, we also develop lights from scratch to customer requirements — from design and 3D-printed prototypes to production tooling, with exclusive supply protection. Learn more about our custom LED light development service.
