LED Light Bar

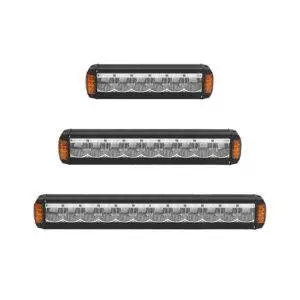

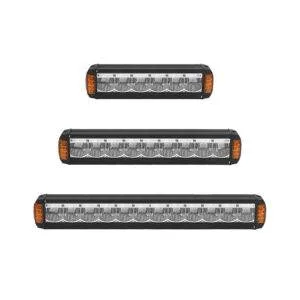

An LED light bar lines up rows of emitters behind a single long lens, producing a wide, continuous band of light that no single round lamp can match. Built in our own factory, our off-road LED light bar combines spot and flood optics in one low-profile housing and adds a built-in daytime running light (DRL), covering trucks, pickups, and off-road machines that need both distance and width from a single fixture. If a round long-range beam suits your vehicle better, see our LED driving lights instead.

How to choose an LED light bar

Start with mounting space, beam layout, and electrical system — these three checks come before anything else on the spec sheet:

• Mounting first — Measure the roof line, bumper, or bull bar before choosing a length; a bar is only as solid as its end brackets, and stainless steel mounts outlast the housing they carry.
• Beam layout — Combination bars place spot optics in the centre for reach and flood optics toward the ends for width; that mix suits most mixed driving, while pure spot or pure flood serve narrower jobs.
• Electrical system — 9–32V DC input runs the same bar on 12V pickups and 24V machinery, and potted drivers ride out voltage spikes and washboard-road vibration.

Combination beam with built-in DRL

The off-road light bar in this range pairs its main combination beam with a DRL function: a low-power daytime running light that keeps the vehicle visible on transit sections without switching on the full beam. On a working vehicle that moves between site, forest track, and public road, that means one bar handles the whole day — full output where there is no oncoming traffic, and a visible, low-draw light signature everywhere else.

Built for off-road punishment

Off-road duty is a torture test: continuous corrugation vibration, branch strikes, packed mud, and a pressure wash at the end of the day. The bar uses a sealed IP67–IP69K housing, solid-state LEDs with no filaments to fracture, potted electronics, and stainless steel brackets. It is a natural fit for forestry and utility vehicles pushing through brush, and for any truck that leaves the tarmac more days than not.

OEM light bar programmes

As an LED light bar manufacturer, we keep one proven bar in the open catalogue and build the rest to order: OEM buyers can specify lengths, beam mixes, connectors, cable lengths, and private-label branding to match their market. Standard MOQ is 60 pieces per model, production lead time is 15–25 working days, and 1–5 samples are available for on-vehicle testing first. CE, E-Mark, and DOT documentation is available on request — send us your target vehicles and volumes and we will quote a programme.

On utility trucks driving into unlit sites a light bar pairs with body-side floods — see work trucks and service bodies.

Beyond the catalogue, we also develop lights from scratch to customer requirements — from design and 3D-printed prototypes to production tooling, with exclusive supply protection. Learn more about our custom LED light development service.
