John Deere Equipment Lights
Direct-fit LED replacements for John Deere tractors and equipment.
John Deere Equipment Lights Models64 products
12 Volt LED Round Fender & Cab Warning Light
One side is an amber lens One side is an amber / red lens 5-3/4″ O.D. 6 LEDs 9-32 Volts

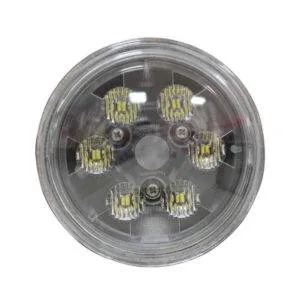

4.5″ 18W PAR 36 LED Tractor Lights
Part Number: RE336111
Superseded RE336111. Uses Original Mount and Wiring. This is a Par 36 Replacement.
4.5inch 40W Round LED Driving Headlight
Size: 114x114x79mm(WxHxD) Power: 40W Low Beam Lumens: 3200 Lumen Input Voltage: 9-32V DC
5.3″ 18W LED Work Lights for John Deere
Push-On connector play replacement for your John Deere’s sealed beam light will provide you twice of the light output. The flood beam and trapezoid beam of 6 x 3W Cree cool white LEDs will ensure you can always see what you should see.
5.6 Inch Round Universal High Low Beam LED Headlights (HELLA 1A3 996 162-331)
Size: 144×165.5x118mm(WxHxD) Power: 60W High-Low Beam Lumens: 4800 Lumen Input Voltage: 9-32V DC
AC/Case/Cat/Ford/IH/JD/MF LED Cab/Fender/Hood Light (2200 Lumens) – Hi/Lo
The TL3025 is a High Low Beam that uses screwed connection points for installation. Uses original mount and wiring connection, Plug and Play. The low beam is a flood pattern, and the high beam adds a spot pattern. Replaces OEM Part Numbers: AR48723, AR85263, AR85264, AR93335, RE10962, RE10963, RE19081, RE19082 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
AC/Case/Cat/Ford/IH/JD/MF LED Cab/Fender/Hood Light – Bottom Mount
Built in Heat Sink, Includes: Stainless Steel Hardware, Long Rubber Bezel, Short Rubber Bezel, Mounting Bracket Replaces OEM Part Numbers: Allis Chalmers: 70269614 Case: A145495 International: 131368C92 John Deere: RE19079, AR85260 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
AC/Case/Cat/Ford/IH/JD/MF LED Cab/Fender/Hood Light – Rear Mount
1/2″ Rear Stud Mount with Built in Heat Sink, Includes: Stainless Steel Hardware, Long Rubber Bezel, Short Rubber Bezel Replaces OEM Part Numbers: Allis Chalmers: 70249146, 70249147 International: 533063R91, 131508C1, 388945R91 John Deere: RE19080, AR85262 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
AGCO DT-RT/John Deere 5E-9030 LED Amber Cab Corner Light
LED Amber Cab Light, replaces OEM Part Numbers: RE217551, AT151873, & AT326622. Direct fit, Plug & Play. Includes Stainless Steel Hardware Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
AGCO White/John Deere 9000 Series LED Hood Light
4×6 LED Light. Uses original mount and wiring, Plug & Play. Replaces OEM Part Number: Agco: 30-3227332 John Deere: RE65423 IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request

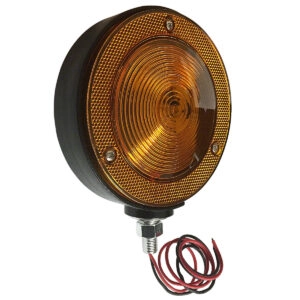

Allis Chalmers/John Deere LED Double-Sided Flashing Light – Amber
Double Sided Warning Light. 1/2″ Mounting stud, Aluminum Body, 25 bulbs per side. Can be used for turn signals, running lights, etc Note- This light does not have a built in flasher, they would require a flashing relay inline in order to flash. IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Allis Chalmers/John Deere LED Double-Sided Flashing Light – Amber/Red
Double Sided Warning Light. 1/2″ Mounting stud, Aluminum Body, 25 bulbs per side. Can be used for turn signals, running lights, etc Note- This light does not have a built in flasher, they would require a flashing relay inline in order to flash. IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Why Choose Our John Deere Equipment Lights
Model-Specific Fitment
Designed around John Deere mounting points and connectors for a direct swap.
LED Upgrade from Halogen
Far higher output and lifespan than the original sealed-beam or halogen lamps.
Field-Proven Sealing
IP-rated housings built for wash-down, dust, and weather exposure.
OEM & Custom Options
Every product can be customized to your exact specification. Common options include:
Voltage
- 12V
- 24V
- 48V
- 9–32V Universal
Mounting
- Fixed Bracket
- Swivel Mount
- Flush Mount
- Custom Bracket
Beam Angle
- 30° Spot
- 60° Flood
- 90° Wide Flood
- 120° Ultra Wide
OEM Branding
- Logo Engraving
- Custom Housing Colour
- Private Label Packaging
- Custom Cable Length
Built to Your Exact Spec
Tell us your equipment model, voltage, mounting requirements, and certification needs. We'll send a tailored quote within 24 hours.
Request a Custom QuoteCommon Applications
Replacing a failed lamp on a John Deere machine should not involve drilling, adapter brackets, or rewiring. These 65 John Deere lights we manufacture as direct-fit LED replacements, from 24W to 60W, reproduce the housing shapes, mounting points, and connectors of the original units at hood, cab, fender, and rear mounting locations — remove the old lamp, plug the new one in. It is the fastest way to bring the lighting of an agricultural fleet up to LED without touching the wiring loom.
How to choose the right John Deere replacement light
Match three things and fitment takes care of itself:
- Lamp position — Hood headlights need a high/low beam for road travel; cab and fender work lights use a flood beam over the implement; rear field and stubble lights cover the hitch area behind the machine.
- Mount style — The range includes bottom-mount, rear-mount, and flush-mount versions of the same lamp, matching exactly how the original was fixed to the machine.
- Electrical — Every light accepts 9–32V DC and connects to the original plug, so 12V and 24V machines take the same part number with no converter and no splicing.
Cross-fitment beyond John Deere
Many of these housings were shared across manufacturers, so a large part of the range also direct-fits Case IH, Ford, New Holland, AGCO, and Komatsu equipment — one stocked lamp can serve several machine colours in a mixed fleet. For older machines still running sealed-beam lamps, see our PAR 36 tractor lights; for the complete agricultural line-up across all brands and positions, browse the full LED tractor light range.
Built for field conditions
A replacement lamp only earns its place if it outlasts the halogen unit it replaces, season after season in the field. Every light here is sealed to IP67–IP69K against pressure washing and field dust, uses potted drivers that absorb engine vibration and alternator spikes, carries stainless steel hardware against fertiliser and wash-down chemicals, and meets CISPR 25 EMC limits so GPS guidance and cab radios stay interference-free.
OEM and wholesale ordering
We supply equipment dealers and agricultural parts distributors worldwide. Standard MOQ is 60 pieces per model with production lead times of 15–25 working days; order 1–5 samples first and validate fitment on the actual machines in your market before committing to volume. Private-label branding and certification documents (CE, E-Mark, DOT) are available on request — send us the John Deere models and OEM lamp part numbers your customers run and we will map our range against them.
Rear extremity and cab warning lamps for these series are also listed with the rest of our LED beacon and warning lights.
John Deere headlights sit alongside Case IH, New Holland, Kubota and Massey Ferguson direct-fit units in our LED tractor and equipment headlights range.
Beyond the catalogue, we also develop lights from scratch to customer requirements — from design and 3D-printed prototypes to production tooling, with exclusive supply protection. Learn more about our custom LED light development service.
Frequently Asked Questions
Which John Deere series do these fit?
We cover a range of John Deere tractor and equipment series across hood, cab, and fender positions. Send us your model and we'll confirm the correct part.
Are these a direct replacement for halogen lights?
Yes — they're designed to fit the original mounting and connector while delivering higher LED output.
Can you supply matching left- and right-hand units?
Yes, paired left/right units are available where the original fitment requires them.
How do we match your lights to our John Deere part numbers?
Send us the machine models or the OEM numbers of the lamps you are replacing, and we will map them against our 65 direct-fit John Deere lights by position, mount style, and connector — you receive a position-by-position cross-reference before ordering.
Are combine lights different from tractor lights on John Deere machines?
Often, yes — a combine's header, unloading-auger, and rear lamps sit in different housings than tractor hood and fender units, so always order by lamp position and OEM part number rather than by machine badge. For universal add-on positions, the LED tractor light range covers both machine types.
Can a dealer mix John Deere fitments with other brands in one order?
Yes — many housings in this range cross-fit Case IH, Ford, New Holland, AGCO, and Komatsu machines, and you can combine part numbers in a single shipment with the 60-piece MOQ applying per model. Request a quote with your mixed fleet list.
Need a specific product?
Our team will recommend the right model for your equipment and operating environment.
Talk to an Engineer or browse all John Deere Equipment Lights →Need Custom John Deere Equipment Lights?
Tell us your wattage, IP rating, and application — we'll spec the right product for your equipment.
