LED Work Lights for Emergency Vehicles
LED warning, scene, and work lights for fire, rescue, and emergency fleets — instant-on in any weather.
Common Challenges in Emergency Vehicles
Scene lighting has to cover the whole incident
A night-time crash or fire scene extends well beyond the vehicle. Crews need wide, shadow-free light across the full working perimeter — not a single narrow beam.
Compartment and operating lights cannot fail
A dark equipment locker or an unlit pump panel slows the crew at the worst possible moment. On an emergency vehicle, lighting is mission-critical equipment.
Around-the-clock readiness wears lighting out
Frequent callouts, pressure washing after every run, constant vibration, and years of standby-then-full-load cycles kill lights that were never built for the duty.
How Tough Lighting Solves It
High-output flood and scene lighting
The work-light line spans 10–580 W in flood and combo beams — from compartment lamps to full incident-scene floods, one supplier covers the whole vehicle.
Mission-grade reliability
IP67–IP69K housings with potted drivers and 9–32 V input ride through washdowns, vibration, and voltage dips on both 12 V and 24 V chassis.
Custom development for body integration
We have co-developed dedicated lights for fire trucks and ambulances — from design and 3D-printed prototypes to tooling and series production.

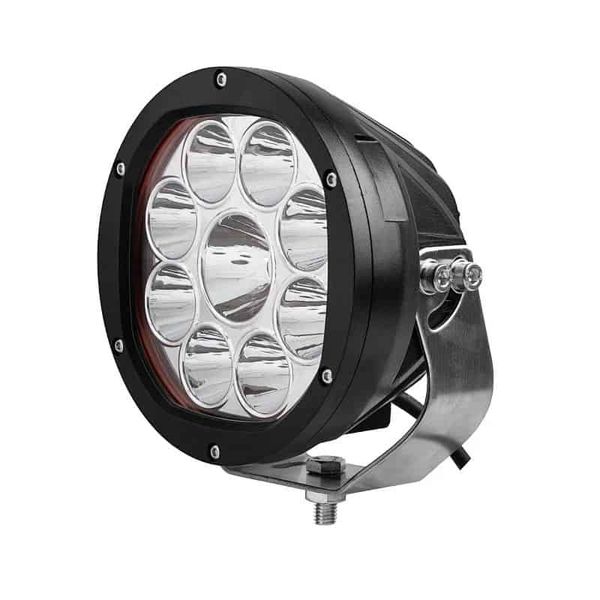

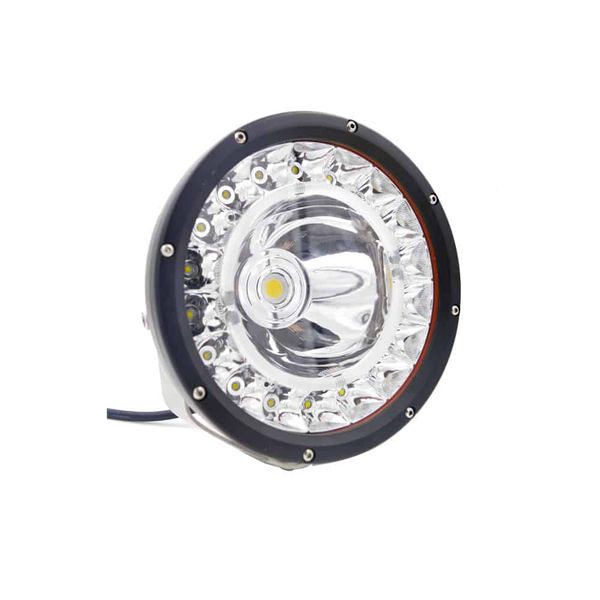

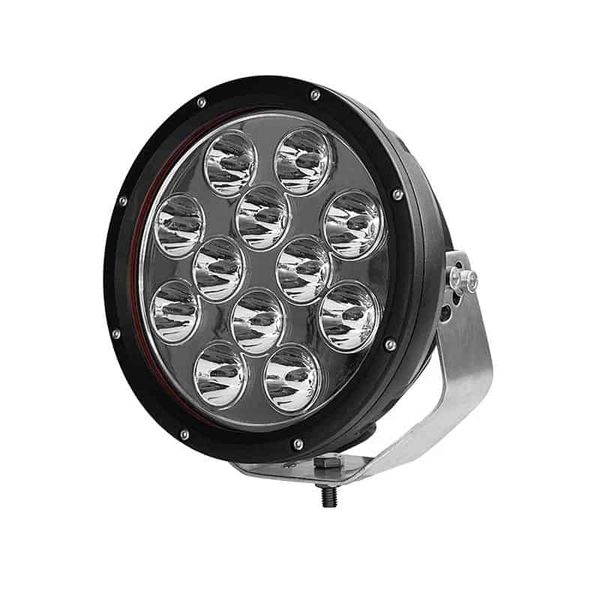

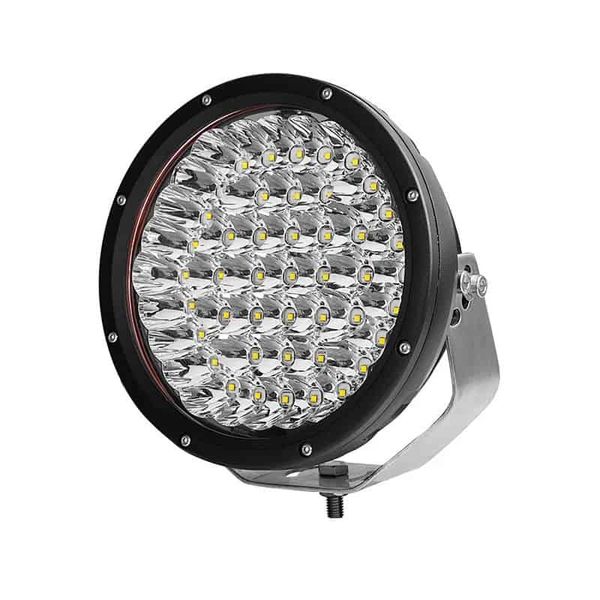

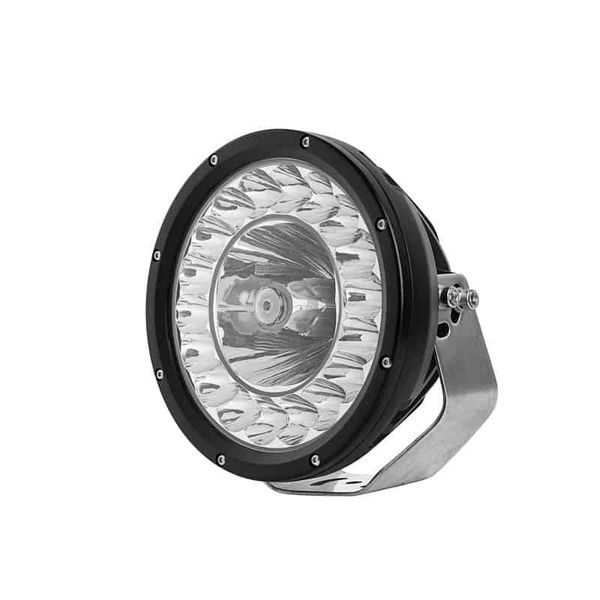

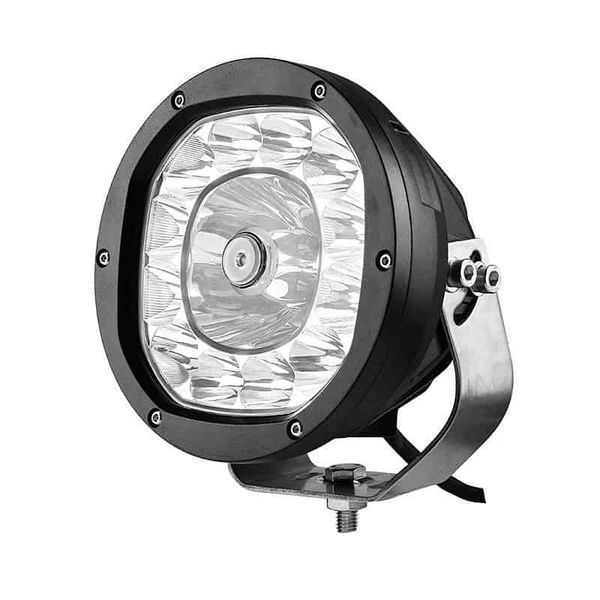

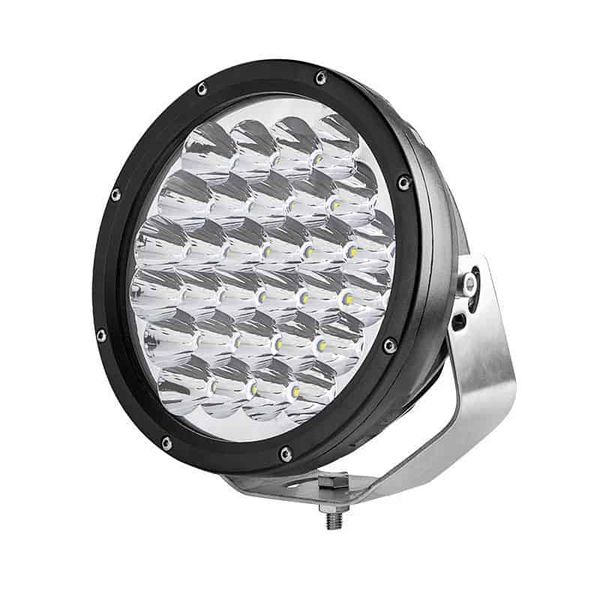

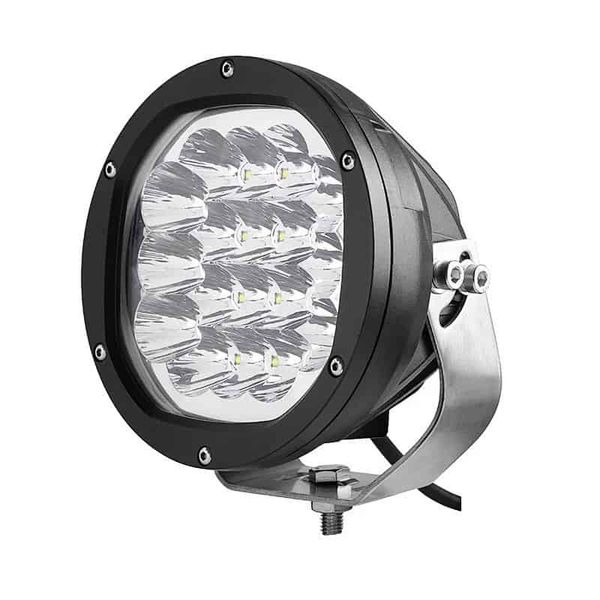

Recommended Products for Emergency Vehicles
Want to See the Full Range?
330+ LED lights with full specifications, organised by category — sent straight to your inbox.
On a fire truck or an ambulance, lighting is not an accessory — it is mission equipment. When a crew opens a compartment at a night-time incident or works around the vehicle on the carriageway, the lights either work or the operation slows down. There is no acceptable failure mode.
We supply LED scene and work lighting to fire apparatus builders, ambulance manufacturers, and emergency-lighting solution providers: sealed, multi-volt fixtures built for vehicles that must be ready around the clock, plus joint development for builders who need lights shaped to their bodywork.
Where scene and work lights go on an emergency vehicle
A typical layout runs scene lights along both flanks and across the rear of the body so the working area around the vehicle is lit shadow-free, adds compartment lamps inside the equipment lockers, and places a dedicated fixture over the pump operator’s panel. Where more throw is needed — a crash scene spread across the full carriageway — high-output floodlights or a mast-mounted array take over. Our heavy-duty work lights cover 10–580 W in flood and combo beams, and LED light bars add broad coverage from bumper or body-side mounts.
Specifications that matter on an emergency fleet
- 9–32 V DC input — One part number across 12 V ambulance chassis and 24 V fire apparatus, tolerant of the voltage dips that pumps, winches, and hydraulics put on the electrical system.
- IP67–IP69K sealing with potted drivers — The electronics are encapsulated in resin and survive pressure washing after every callout, road salt, and spray from the hose lines.
- EMC suppression (CISPR 25) — No interference with radios, telematics, or patient-care electronics on board.
- Stainless-steel brackets — The mounting hardware endures the same washdowns as the housing.
Joint development with apparatus builders and solution providers
Much of our emergency-vehicle work is not catalogue supply but joint development. We have developed dedicated lights for fire trucks and for ambulances together with their manufacturers — starting from the mounting envelope and the photometric target, through 3D-printed prototypes fitted on the actual body, to production tooling and series supply with exclusivity protection. If your body design calls for a light the catalogue does not offer, our custom LED light development service takes it from drawing to production.
Wholesale supply for emergency fleets
We supply fire apparatus builders, ambulance upfitters, and emergency-lighting distributors from 60 pieces per model, with production in 15–25 working days. Order 1–5 samples first and trial them on a demonstrator vehicle; CE, E-Mark, and DOT documentation is prepared per destination market, with EMC testing to CISPR 25.
Frequently Asked Questions
How much power do we need for scene lighting?
It depends on the area to cover: compartment and panel lights sit in the low tens of watts, body-side scene lights in the mid range, and full incident-scene floods run to hundreds of watts. Our work-light line spans 10–580 W, so one supplier covers the whole vehicle. Send us the vehicle layout and we will propose a combination.
Will chassis voltage fluctuation or vibration affect the lights?
No. All models accept 9–32 V DC, so they tolerate the dips and transients that pumps and hydraulics cause on both 12 V and 24 V systems. The drivers are potted inside the housing, which protects the electronics against constant vibration.
Can you develop a light integrated into our vehicle body?
Yes — that is a core part of our emergency-vehicle business. We have co-developed dedicated lights for fire trucks and ambulances, taking projects from design and 3D-printed prototypes through production tooling to series supply. See our OEM/ODM service page for the full process.
What separates scene lighting from warning beacons on emergency vehicles?
Function and regulation: warning beacons are coloured, flash-patterned devices approved to signal priority, while scene lights are white floods that illuminate the working area around the vehicle. Our range covers the scene-lighting side — see the LED work lights range for area coverage options.
Do LED scene lights reach full output in freezing weather?
Instantly — unlike HID or halogen, an LED needs no warm-up, so full brightness is there the second the crew arrives, even after hours parked in sub-zero cold. Where snow packs onto the optic, our heated lens technology keeps the surface clear.
Do you work directly with ambulance and fire apparatus upfitters?
Yes — upfitters are a core customer group: we supply scene lights with CE and E-Mark documentation, connector and cable options tailored to body builds, and samples within 1–5 days for evaluation. Request a quote with your build specification.
Talk to our engineering team
We'll match the right product to your exact equipment model and operating environment — free of charge.
Get a Free QuoteReply within 24 hours
Need LED Lights for Emergency Vehicles?
Tell us your equipment model and operating environment — we'll recommend the right solution.
