New Holland LED Lights
Direct-fit LED replacements for New Holland and Ford-New Holland tractors and skid steers.
New Holland LED Lights Models21 products

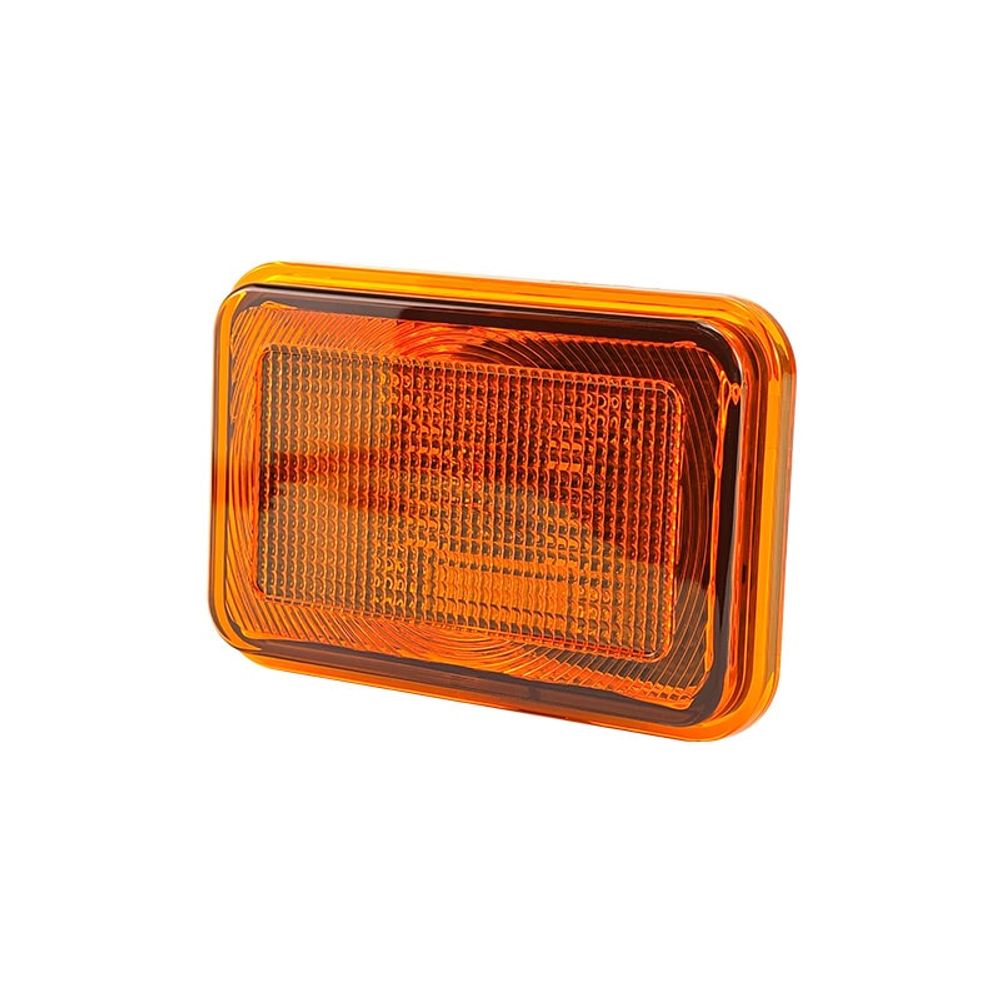

9841566 Amber LED Lamp for NEW HOLLAND AGRICULTURE
Part Number: YW-1013
9841566 Amber LED Lamp for NEW HOLLAND AGRICULTURE
Bobcat/Deere/New Holland Skid Steer LED Headlight
Skid Steer Headlight is a Plug & Play LED Light. Fits into original housing. Replaces OEM Part Numbers: Bobcat: 6661353 John Deere: MG86533428 New Holland: 9829523 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Case/Case IH 71-89 Mag-STX/Deere/New Holland T9-TJ I LED Cab Light
Part Number: WL3030
Uses Original Mount & Wiring. Includes: Stainless Steel Hardware, Mounting Bracket. Replaces OEM Part Numbers: Case New Holland: R54411, R54412, 92269C1, 178345A1, 87435762, 180097A1, 1983210C1, 275335A1, 305256A1, 87773385, 92263C1 John Deere: AT208435, AT226338, AT208435, AN272464 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Case IH/Challenger/New Holland LED Front Hood/Upper Cab Light
Part Number: YW-3040
LED Light for direct replacement, Plug & Play. Light will bolt right into factory light housing. Will bolt into OEM light housing part numbers: 87455676, 87455677, & 87308895 Replaces CNH OEM Part Numbers: 87539115, 87328621, 47376469, 84530388 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Case IH CS-Puma/New Holland T6000-TS-A Series LED Upper Cab Light
Part Number: YW-6401
LED Upper Cab Light for Case New Holland Tractor. Uses Original Mount & Wiring. Includes: Connector and Stainless Steel Hardware. This light will bolt into the original mount in the tractor. Note: This light may not work on Listed Case/IH Models, due to cab variations. Please reference OEM part number, to ensure proper applications. Replaces OEM Part Numbers; Case/IH: 82031078 Ford New Holland: 82031075 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Case IH CX-Steiger/New Holland T8-TG Series LED Fender Light
Part Number: WL3085
Tiger Lights TL3085 Light LED Fender Work Light. It comes with a hollow bolt to easily run the wire to hide under the fender. Uses original wiring, however, it will require to install the connector after running wires through bolt. Includes: Deutsch Connector, Stainless Steel Hardware, Mounting Bracket. Replaces OEM Part Numbers; Case/IH: 20-1730T91 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Case IH Magnum/New Holland T8 LED Oval Cab/Windshield Light – Swivel Mount
Part Number: WL7050
LED Oval Cab Light for Case New Holland Tractor. Replaces Oval Cab Lights on 2015 and Newer Case/IH Magnum Tractors. Uses Original Mount & Wiring. Includes: Connector, Adapter, and Stainless Steel Hardware. This light will bolt into the original mount in the tractor. Please reference OEM part number, to ensure proper applications. Replaces OEM Part Numbers; Case New Holland: 84269973, 84269971 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request Swivel Mount
Case IH Magnum/New Holland T8 LED Oval Fender Light
Part Number: YW-6652F
LED Oval Fender Work Light w/Hollow Bolt for Case/IH and New Holland Tractors. Powdercoated Housing, Oversized Aluminum Heatsink, RFI and EMI Filters, Includes: Stainless Steel Hardware, Hollow Bolt, Adapter, Mounting Bracket. Note: For Magnum Tractor Models, this replaces rear fender lights on models with oval lights on the upper cab and fenders. Replaces OEM Part Numbers: Case New Holland: 84380268 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Case/John Deere/New Holland Skid Steer LED Headlight
Part Number: YW-4038
Skid Steer Headlight is a direct replacement, Plug & Play LED Light. It fits into the two front lights above the cab and the rear work/reverse light. Replaces OEM Part Numbers; Case: 222004A2 John Deere: KV26918, KV13708, KV13709, AT345169 New Holland: 9844417, 9844418, 86501306, 86533428 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Case/New Holland Skid Steer LED Headlight
Skid Steer Headlight is a Plug & Play LED Light. Fits into original housing. Replaces OEM Part Numbers: Case New Holland: 84306271, 84306268, 84306337 Note: This light fits New Holland Skid Steers with Heavy Duty Light Housing. Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
FORD NEW HOLLAND 40 SERIES LH / RH LED REAR TAIL LIGHT LAMP
Part Number: YW-1090
Ford New Holland Tractor Series 40 5640, 6640, 7740, 7840, 8240, 8340, OEM Reference 81864736, F0NN13N465CA Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Ford-New Holland 70 Genesis/Komatsu LED Cab/Fender Light – Bottom Mount
Part Number: WL3050
LED Tractor Work Light. Uses Original Mount & Wiring. Includes: Deutsch Connector, Stainless Steel Hardware, Mounting Bracket. Replaces OEM Part Numbers; Case/IH: 239758A1, 301891A2, 178345A1, 431025A1 Ford New Holland: 9824851, 9846121 Komatsu: 20Y-06-K2760 Features: IP67 Waterproof EMC CISPR 25 Class 4; documentation available on request
Why Choose Our New Holland LED Lights
Series-Specific Fitment
Built to the original mounting points and connectors for the 40, 70 Genesis, TS, T6000/T7000 and T8 series.
Shared CNH Housings
Many lamps also direct-fit Case IH Magnum, Puma and Steiger machines, and the Ford-badged predecessors.
Field-Proven Sealing
IP67–IP69K housings with potted drivers, built for wash-down, dust and continuous vibration.
OEM & Custom Options
Every product can be customized to your exact specification. Common options include:
Voltage
- 12V
- 24V
- 48V
- 9–32V Universal
Mounting
- Fixed Bracket
- Swivel Mount
- Flush Mount
- Custom Bracket
Beam Angle
- 30° Spot
- 60° Flood
- 90° Wide Flood
- 120° Ultra Wide
OEM Branding
- Logo Engraving
- Custom Housing Colour
- Private Label Packaging
- Custom Cable Length
Built to Your Exact Spec
Tell us your equipment model, voltage, mounting requirements, and certification needs. We'll send a tailored quote within 24 hours.
Request a Custom QuoteCommon Applications
Agricultural Machinery
LED work lights for tractors, combines and sprayers — position-by-position plans, 103 direct-fit part numbers, IP69K and 9–32 V for the whole farm fleet.
Construction & Earthmoving
High-output LED work lights for excavators, loaders, and earthmoving equipment — built for dust, impact, and long shifts.
Replacing a lamp on a New Holland tractor should be a bolt-out, bolt-in job. These lights are built to the original mounting points and connectors across the Ford-New Holland 40, 70 Genesis and TS series, the T6000/T7000 and T-T6-T7 cab range, and the T8010–T8030 headlight positions.
How to choose the right New Holland replacement light
Match three things and fitment takes care of itself:
Series and generation — Ford-New Holland badged machines (40, 70 Genesis, TS) use different hood and cab housings from the later T-series. Check the badge before the photograph.
Lamp position — Hood and headlight positions need a defined high/low beam for road travel; cab, handrail and fender positions take a flood beam over the implement.
Electrical — Every light accepts 9–32V DC and connects to the original plug, so 12V and 24V machines take the same part number without a converter.
Working from the number stamped on the old lamp is faster than matching by eye. Where a New Holland OE number is published on the product page — for example 9841566 on the amber agriculture lamp, or 87529728 on the T8010–T8030 headlights — search that number directly.
Shared fitments with Case IH and Ford
CNH built many housings across brands, so a large part of this range also direct-fits Case IH Magnum, Puma, Steiger and Maxxum machines, and the Ford-badged tractors that preceded the New Holland name. Where a lamp is specified against more than one make, the product title lists every make it is sold against. See also our LED tractor lights and John Deere LED lights ranges.
Skid steer and construction positions
New Holland skid steer headlights share a flush-mount housing with Case, Bobcat and Deere units. Those are listed here and in our LED skid steer lights range.
Built for field conditions
A replacement lamp only earns its place if it outlasts the halogen unit it replaces. Every housing is sealed to IP67–IP69K for pressure washing, the driver is potted against vibration, and the bracket hardware is stainless steel.
OEM and wholesale ordering
We supply equipment dealers and agricultural parts distributors worldwide. Standard MOQ is 60 pieces per model, with private-label packaging, custom cable lengths and bracket changes available.
Frequently Asked Questions
Which New Holland series do these fit?
The range covers Ford-New Holland 40, 70 Genesis and TS series, the T-T6-T7 and T6000/T7000 cab range, T8010–T8030 headlight positions, T8-TG and T9-TJ, plus New Holland skid steers. Each product page states the exact series the lamp is sold against.
Will these fit a Ford-badged tractor?
In many cases yes. Ford and New Holland shared housings across the 40, 70 Genesis and TS generations, and those lamps are listed under both names. Check the series on the product page rather than the badge on the bonnet.
Do you have lamps for Case IH as well?
Yes. CNH used common housings across brands, so a large part of this range is also specified against Case IH Magnum, Puma, Steiger, Maxxum and CX machines. The product title lists every make each lamp is sold against.
How do we match your lights to a New Holland part number?
Send us the number stamped on the old lamp. Where an OE number is published we list it on the product page — for example 9841566 and 87529728. For numbers not yet listed, our team will confirm the equivalent against the machine series and lamp position.
Are the left- and right-hand units sold separately?
Yes. Wraparound hood lights and the T8010–T8030 headlights are handed, and left and right are separate part numbers. We can supply matched pairs or a full set for one machine.
What is the minimum order for dealers?
Standard MOQ is 60 pieces per model. Mixed orders across models in this range are accepted, and private-label packaging is available for distributors.
