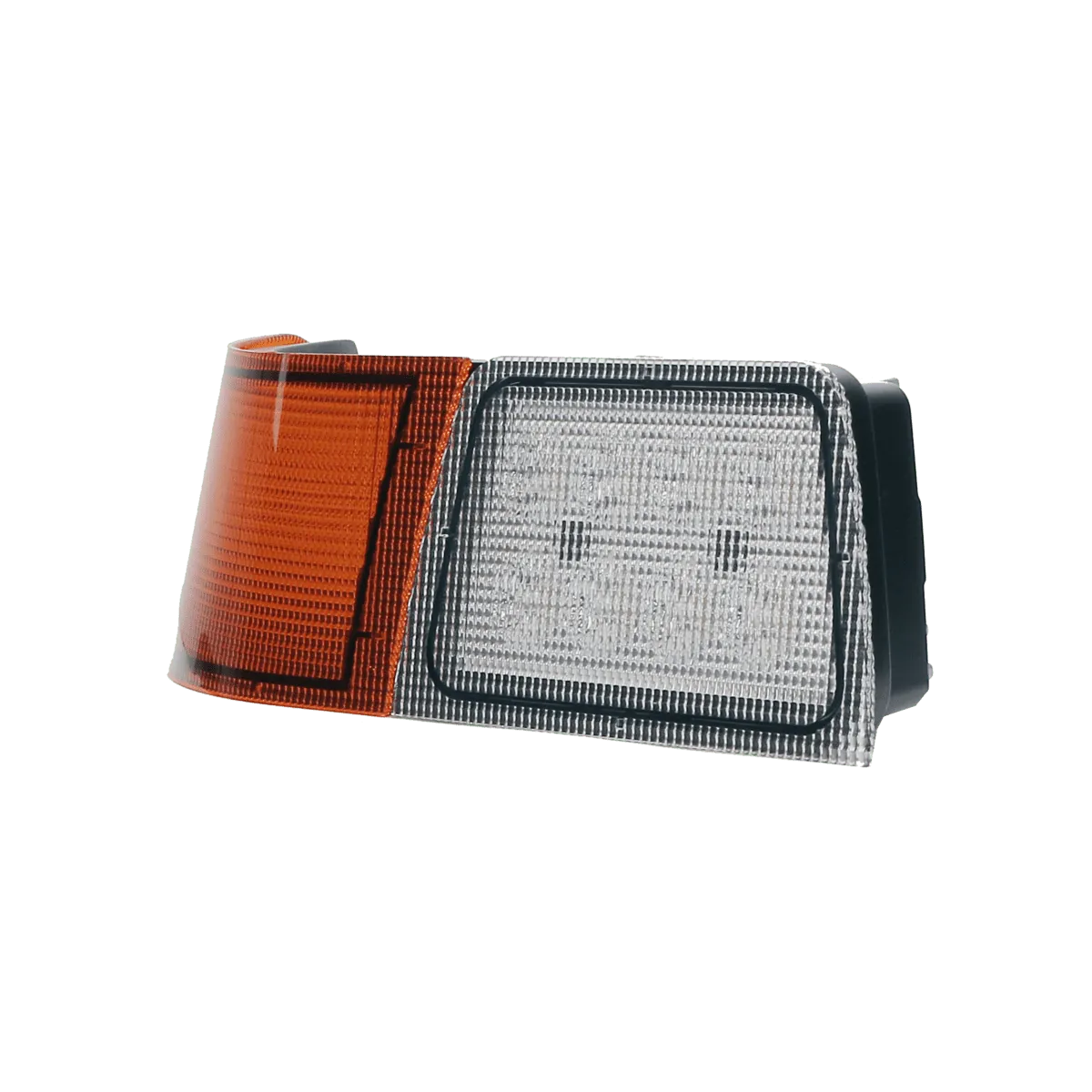

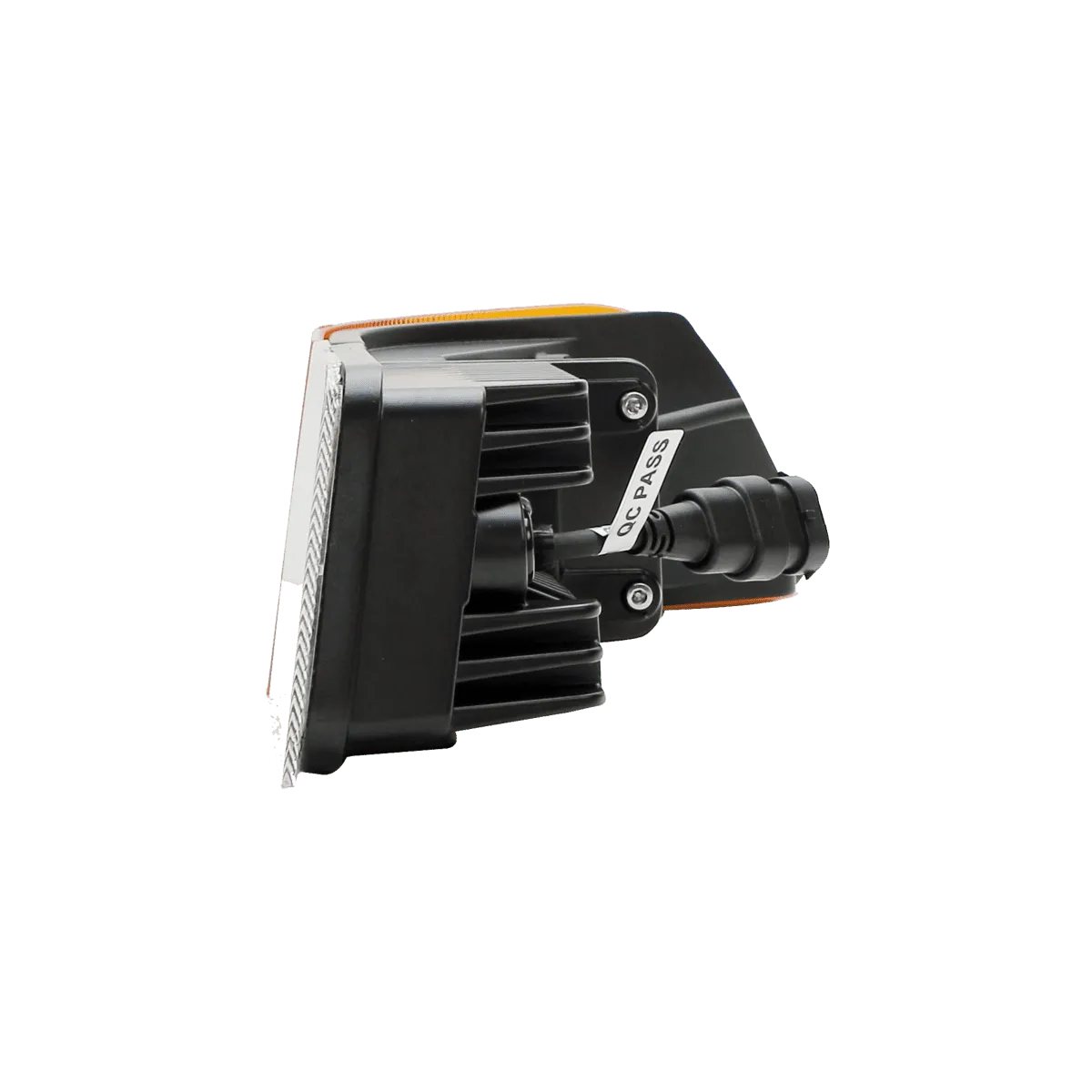

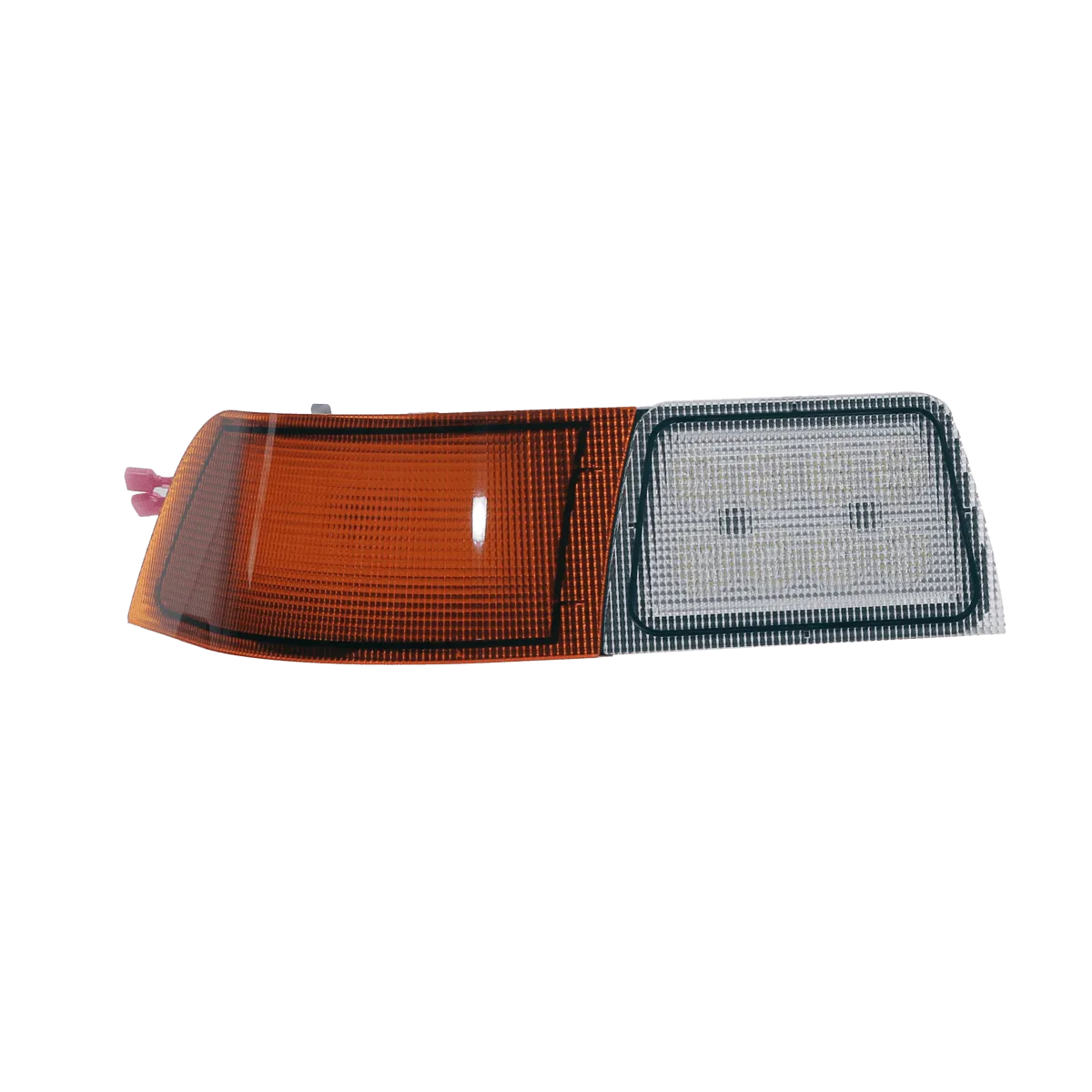

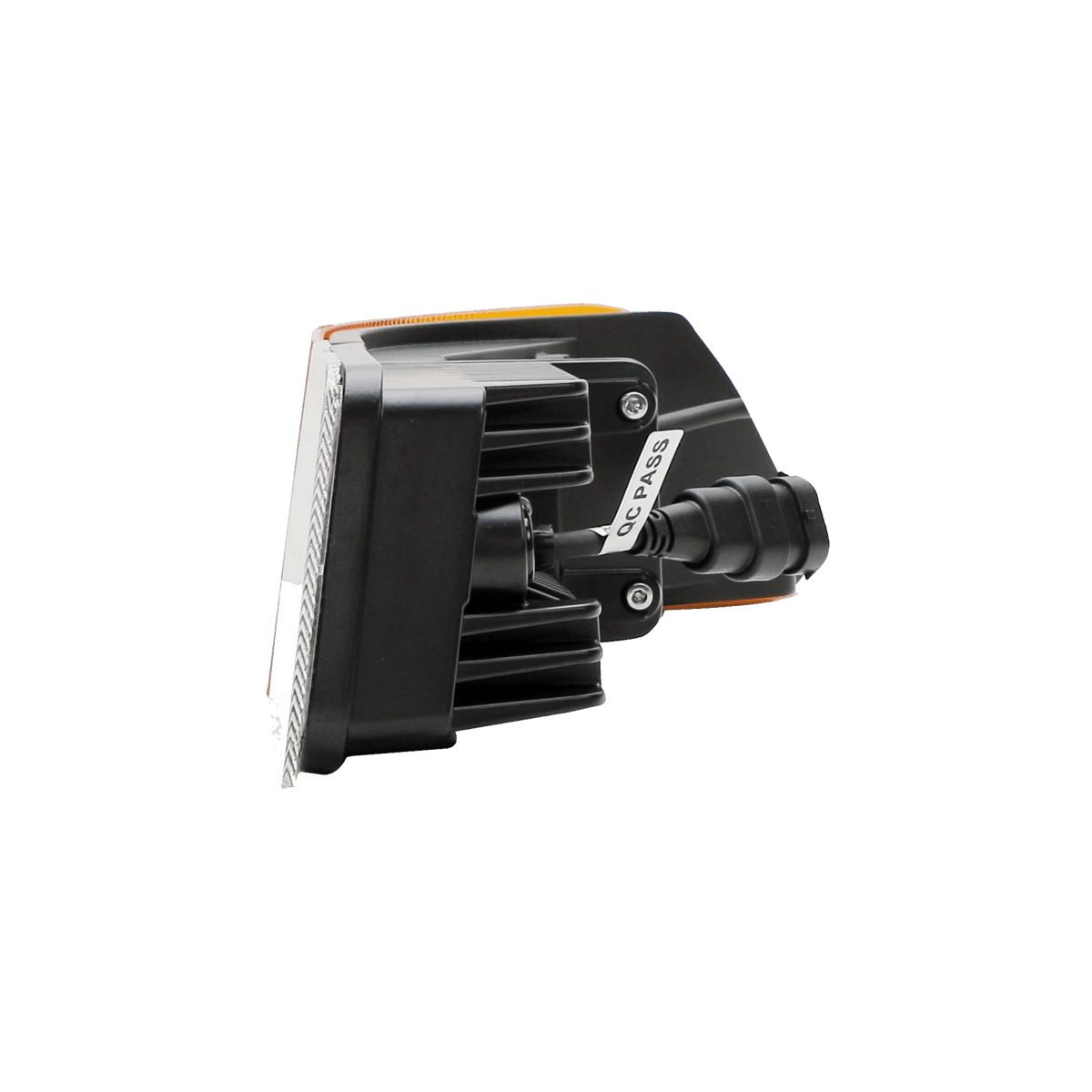

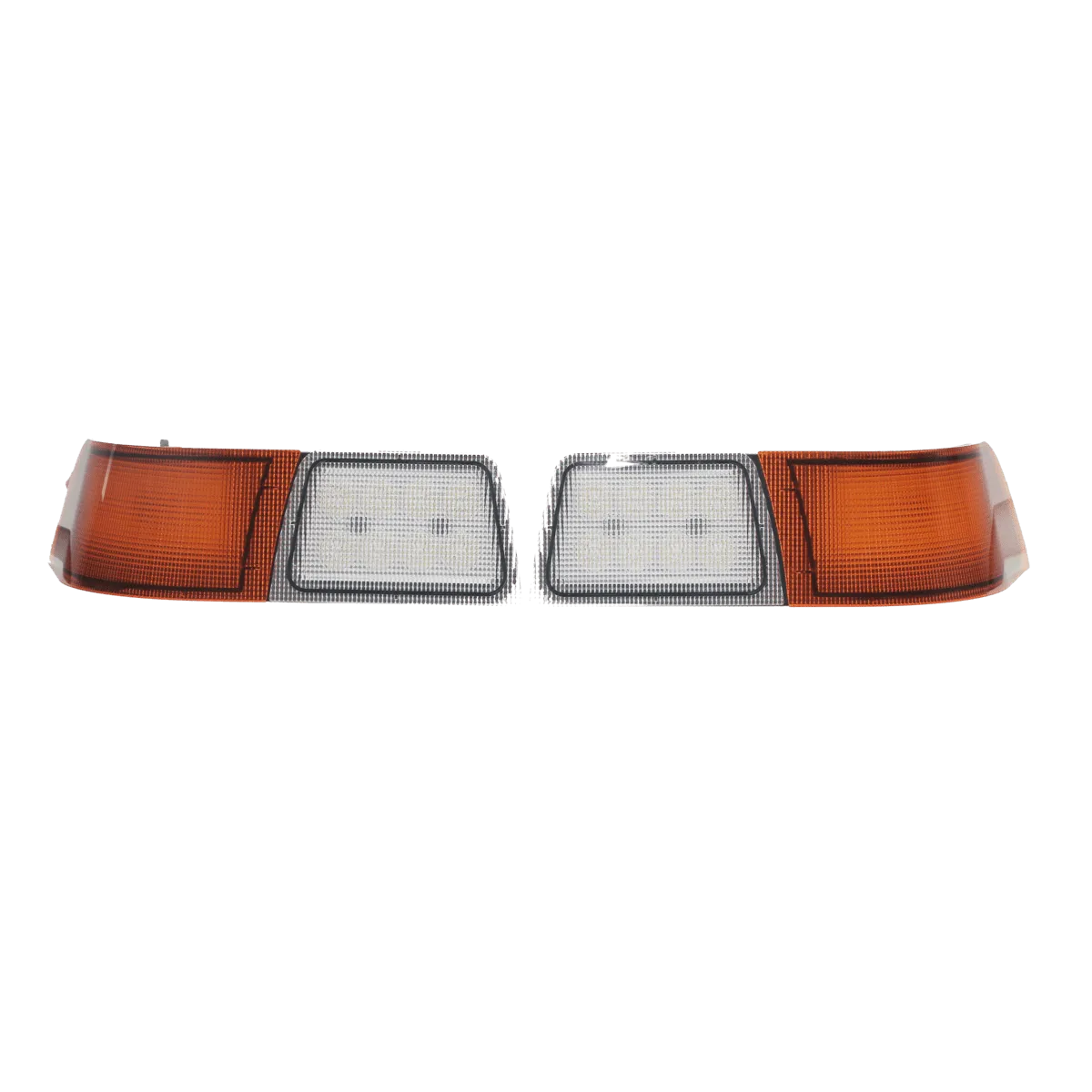

Case IH MX Series Magnum LED Left-Hand Rear Tail Light
LED Light for direct replacement, Plug & Play. Light will bolt right into factory light housing. This light is the rear left tail light, red corner with white work light. The red light has a built in resistor to work with original factory flasher. Lumen rating for white light is listed in details.
Replaces Case/IH Part Number: 279222A1
Amber Light Information
Watts: 17W + 12W Resistor
Amps: 2.4
Features:
- IP67 Waterproof
- EMC CISPR 25 Class 4
- E-mark, ECE R10, RoHS
Spefications
Applications
Spefications
| Description | Left LED Tail Light | Wattage | 30(White Light) |
| Dimensions(WxHxD) | Voltage | 10-30V DC | |
| Lumens | 3000(White Light) | Light Pattern | Red flashing/Flood Beam |
| Amps | 3.3 | Warranty | 2 Years |
- Plug and play
- Direct replacement
- Light will bolt right into factory light housing
- Rear left tail light, red corner with white work light
- The red light has a built in resistor to work with original factory flasher
- Red Light Information; Watts: 17W + 12W Resistor and Amps: 2.4
Applications
Case IH® MX Series Magnum Tractors: MX180, MX200, MX220, MX240, MX270
Replaces Case IH ® Part Number: 279222A1
