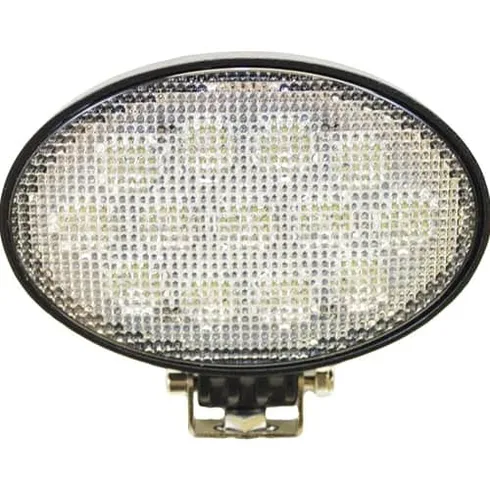

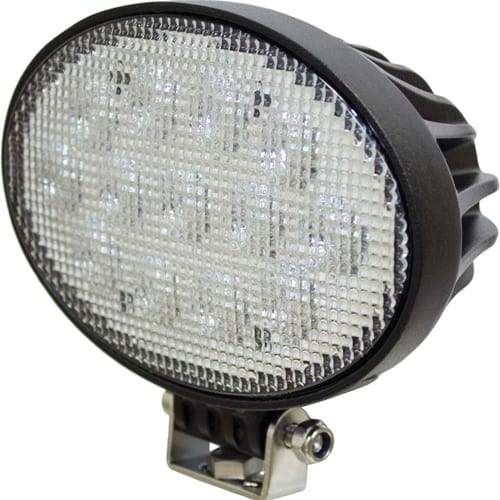

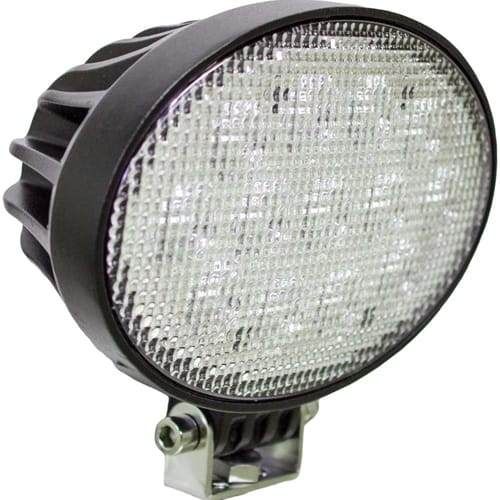

Challenger/CIH/Gehl/JD/MF LED Fender/Floodlamp/Handrail Light
Powdercoated Housing, Oversized Aluminum Heatsink, RFI and EMI Filters, Includes: Stainless Steel Hardware, Mounting Bracket
Replace OEM Part Numbers
Case/IH: 87584890
Massey Ferguson: 3788699M93
Features:
- IP67 Waterproof
- EMC CISPR 25 Class 4
- E-mark, ECE R10, RoHS
| Description | LED Tractor & Combine Light | Wattage | 39 |
| Dimensions(WxHxD) | 5.75″ x 3.75″ x3″（WxHxD) | Voltage | 10-30V DC |
| Lumens | 3120 | Light Pattern | Flood |
| Amps | 3.25 | Warranty | 2 Years |
- Powder coated housing, oversized aluminum heat sink, RFI and EMI filters
- Includes Stainless steel hardware and mounting bracket
Replaces Rear Fender Light On Challenger® Tractors: MT425B, M445B, MT455B, MT465B, MT465D, MT475B, MT475D, MT485D, MT495D, MT515D, MT515E, MT525B, MT535B, MT545B, MT525D, MT535D, MT545D, MT545E, MT555B, MT565B, MT565D, MT565E, MT555D, MT555E, MT575B, MT575D, MT575E, MT585B, MT585D, MT585E, MT595B, MT595D, MT635B, MT645B, MT655B, MT665B
Replaces Rear Fender Light On – Case IH® Part Number 87584890:
- Case IH® Combines: 5088, 5140, 6088, 6140, 7088, 7120, 7130, 7140, 7230, 8010, 8120, 8230, 8240, 9120, 9130, 9230, 9240
Replaces Rear Fender Light On – Massey Ferguson® Part Number 3786668M93:
- Massey Ferguson® Tractors: 5425, 5435, 5445, 5455, 5450, 5460, 5465, 5470, 5475, 5480, 5609, 5610, 5611, 5612, 5613, 6350, 6360, 6445, 6455, 6460, 6465, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 6614, 6615, 6616, 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499, 7614, 7615, 7616, 7618, 7619, 7620, 7622, 7624, 7626, 7714, 7715, 7716, 7718, 7719, 7720, 7722, 7724, 7726, 8450, 8460, 8470, 8480
Replaces Handrail Light On Challenger® Tractors: MT455D, MT465D, MT475D, MT485D, MT495D, MT515D, MT515E, MT525D, MT535D, MT545D, MT545E, MT555D, MT555E, MT565D, MT565E, MT575D, MT575E, MT585D, MT585E, MT595D, MT645C, MT645D, MT645E, MT655C, MT655D, MT665E, MT675C, MT675D, MT675E, MT685C, MT685D, MT685E
Replaces Handrail Light On – Massey Ferguson® Part Number 4291311M91:
- Massey Ferguson® Tractors: 4707, 4708, 5610, 6614, 6615, 6616, 7614, 7615, 7616, 7618, 7620, 7622, 7624, 7626, 7714, 7715, 7716, 7718, 7719, 7720, 7722, 7724, 7726, 8650, 8660, 8670, 8680, 8690, 8727, 8730, 8732, 8735, 8737
Replaces Floodlamp On – Johh Deere® Part Number RE198623:
- John Deere® Tractors: 4010, 5045D, 5045E, 5055D, 5055E, 5065M, 5065E, 5075E, 5075M, 5083E, 5085M, 5085E, 5093E, 5095M, 5095MH, 5100M, 5100MH, 5100E, 5105M, 5105ML, 5101E, 5115M, 5220, 5225, 5325, 5420, 5425, 5520, 5525, 5625
- John Deere® Compact Tractors: 1023E, 1026R, 2305, 2320, 2340, 2520, 2720, 3033R, 3039R, 3046R, 3120, 3203, 3320, 3520, 3720, 4010, 4044M, 4052M, 4066M, 4044R, 4052R, 4066R, 4105, 4110, 4115, 4120, 4210, 4310, 4320, 4410, 4510, 4520, 4610, 4710, 4720
Replaces Floodlamp On – John Deere® Part Number AH207788:
- John Deere® Combines: 9470STS, 9560, 9560STS, 9560SH, 9570, 9570STS, 9650STS, 9660, 9660CTS, 9660STS, 9670, 9670STS, 9750STS, 9760STS, 9770, 9770STS, 9860, 9860STS, 9870STS
Replaces OEM Part Numbers: 3786668M93, 4291311M91, RE198623, AH207788
Replaces Front Headlight on Gehl® Skid Steers:
Gehl® Skid Steers: 3640E, 3840, 4240E
