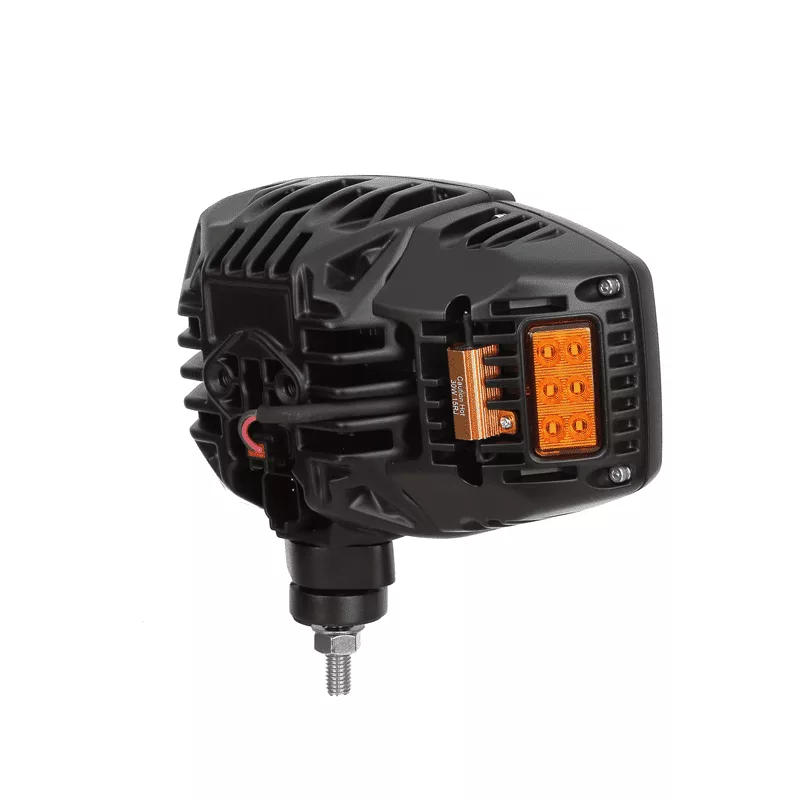

In climates where snow and ice can dangerously impair visibility, Tough’s LED Heated Snow Plow Lamps are ideal as cold weather supplemental lighting or as road-legal driving lights when the vehicle’s headlights are obstructed. These lamps automatically prevent snow and ice buildup with a sensor that monitors the lens and activates an internal heating element when its temperature falls too low. Designed for the tough conditions facing plow operators, the LED Heated Snow Plow Lamps can be mounted on tractors, ATVs, and other vehicles that operate in wintery conditions.
Functions | Low Beam, High Beam, Turn,Side DI, Parking | Homologation | DOT FMVSS 108/SAE J914/ SAE J588/ SAE J222 |
LED Type | Ordinary LED / OSRAM LED (optional) | Emitting color | White and Amber (Turn) |
Color Temp | White:5700K-6500k Amber:1600-1800K (Turn) | Energy Consumption(Tested) | Low Beam 30W;High Beam 60W; DRL 12W; Turn Signal Light 12W |
Current Draw @ 12V: | Low Beam 2.5A; High Beam 5A; DRL 1A; Turn Light 1A | Effective Lumen | |
De-icing | No | Control Mode | |
EMC Grade | CISPR 25 Class 3 | Operating Voltage | 10~30VDC |
Connector | 6 pin DT /AMP /Cable (optional) | Size | 229X173X106mm |
Housing Material | Aluminium Alloy | Lens Material | Anti-UV PC |
Lens Process | Surface Hardened | Bracket Material | Stainless Steel |
PC Brand | COVESTRO 2407 | Anti-Corrosion | ISO 9227 240H |
Vibration Level | IP Rate | IP66, IP6K9K | |
Work Temp | 40~+50°C | Life Time | >30,000h |
Universal
