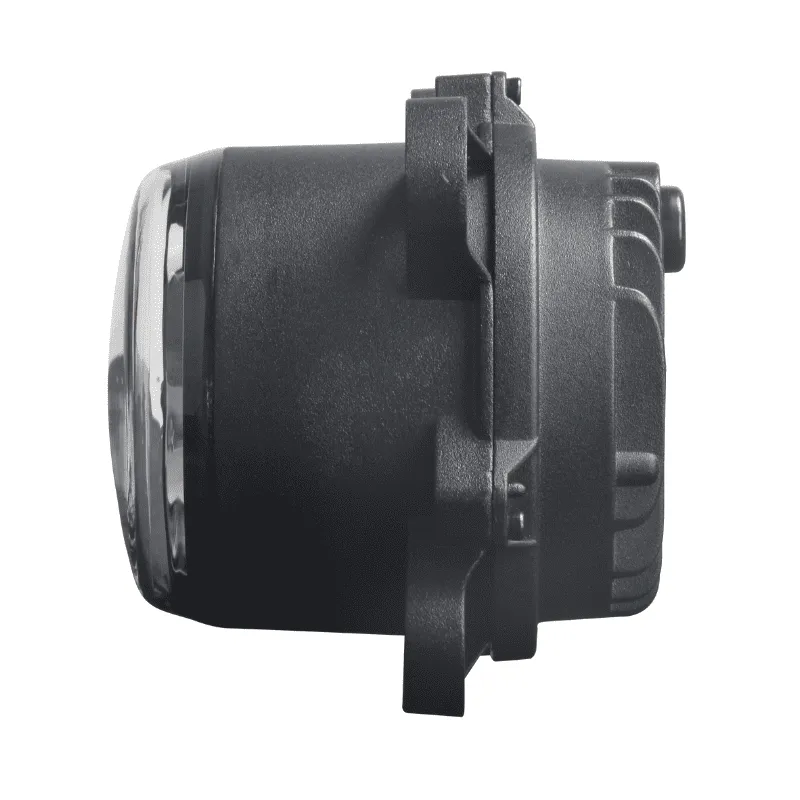

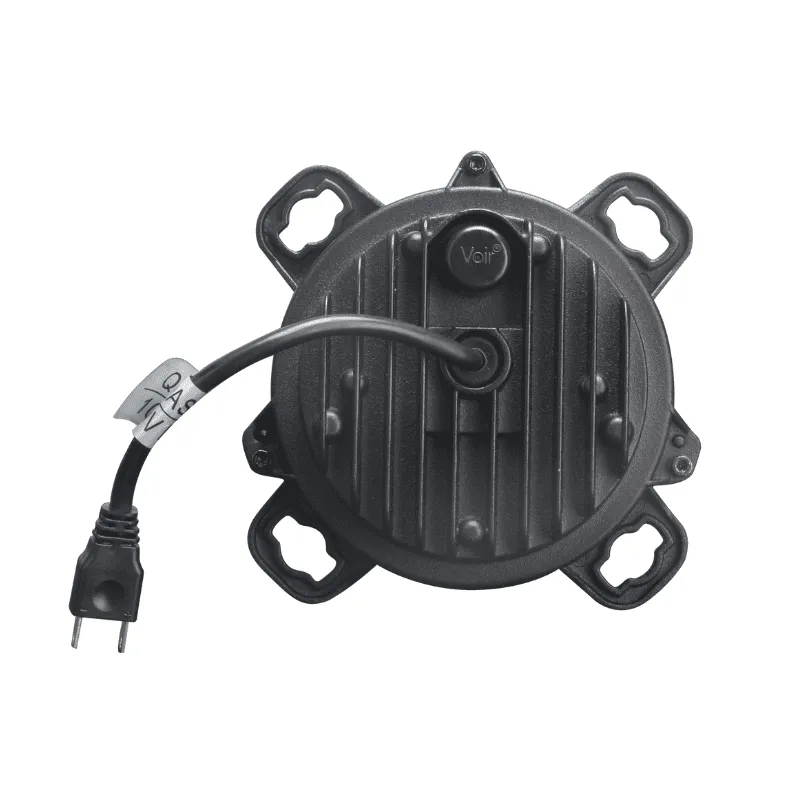

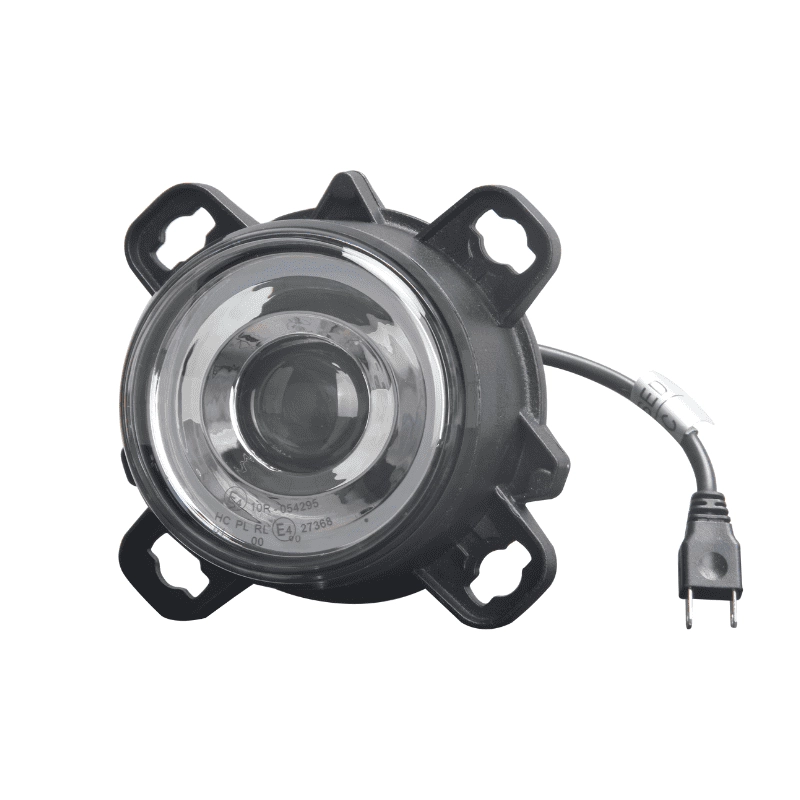

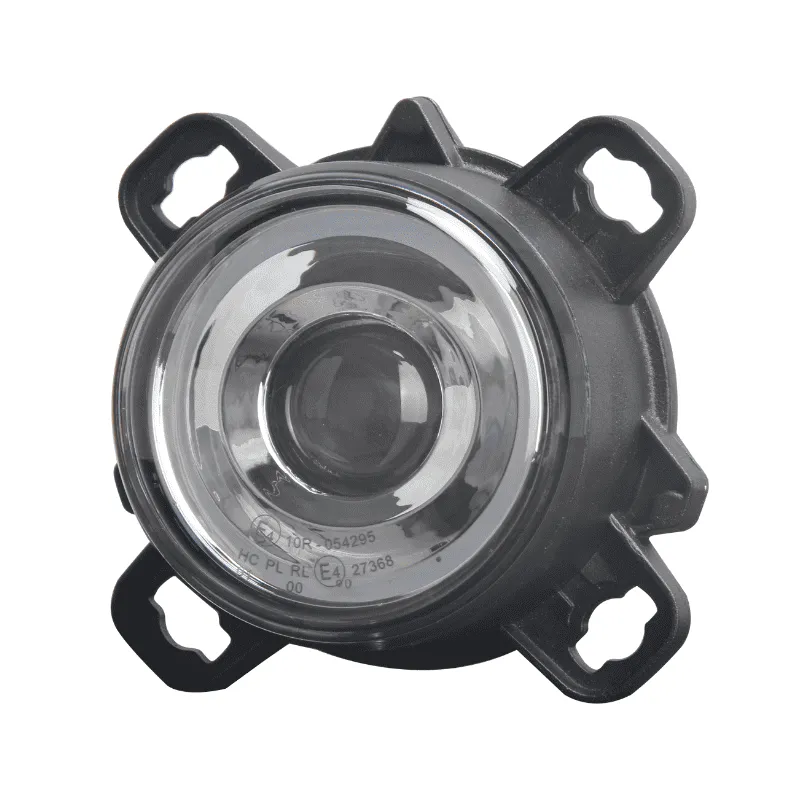

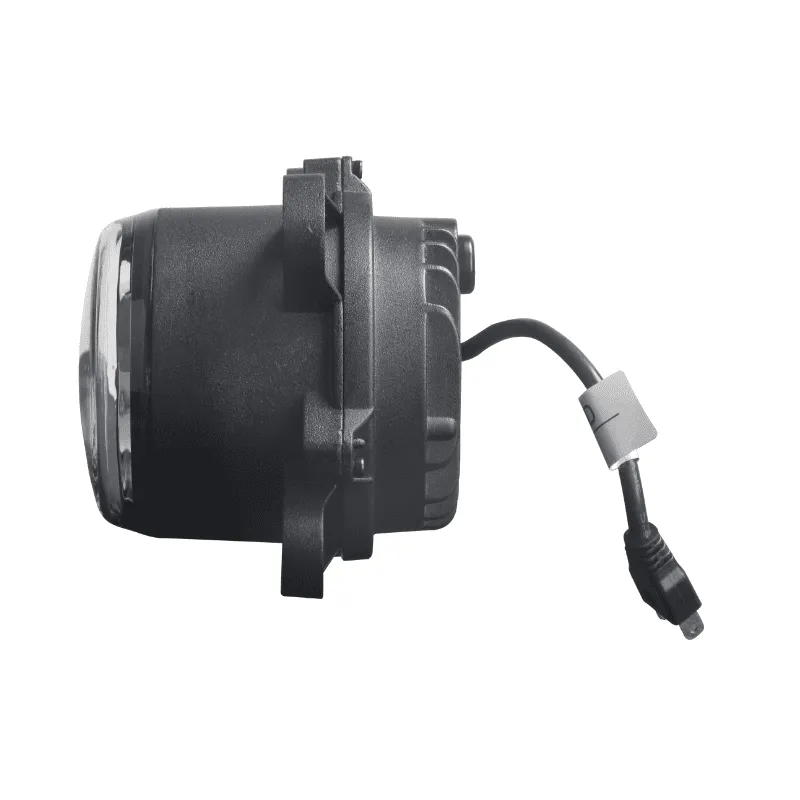

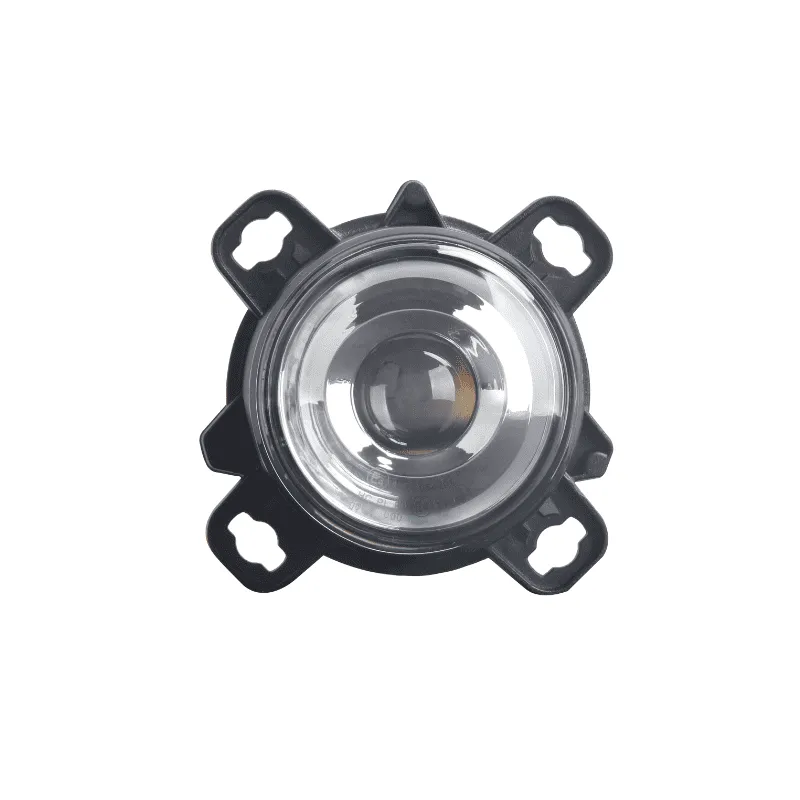

HELLA’s 90mm LED Headlight Classic Modules with Low Beam
This headlight is equipped with the correct connectors to replace Hella’s bi-halogen modules. In terms of dimensions, mounting and connectors, your current halogen lamps can be replaced plug & play by this LED version headlighting.
GENERAL CHARACTERISTICS
- Functions: Low beam and high beam
- Housing: Powder coated aluminum en PMMA
- Connection: identical connector as Hella variant (AMP)
- Lamp finish: PMMA
- Lifespan : 30.000 hours+
- Waterproof: Spray-proof (IP68)
- Radio Interference suppression:
- Equipped with E-marking 10R, 7R, 112R
Spefications
Applications
Spefications
| Description | LED Headlight | Wattage | Low Beam: 15W |
| Dimensions(WxHxD) | 118 x 118 x 109mm | Voltage | 10-30V DC |
| Lumens | Light Pattern | Low Beam | |
| Amps | 3.3 | Warranty | 2 Years |
Applications
PART NUMBERS:
90mm Halogen High Beam Classic Headlamp Module: 008191051
90mm Halogen High Beam Classic Headlamp Module (bulk):008191057
90mm Halogen High Beam Classic Headlamp Module w/Mounting Frame (bulk):H11191047
90mm DE Halogen Low Beam Classic Headlamp Module:008193021
90mm DE Halogen Low Beam Classic Headlamp Module:008193027
90mm DE Halogen Low Beam Classic Headlamp Module (w/frame):H11193047
