John Deere 7020-7030/8020-8030/8R Series LED Hood Light – Hi/Lo

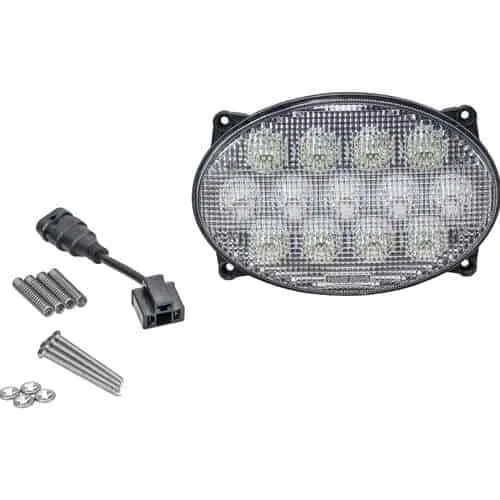

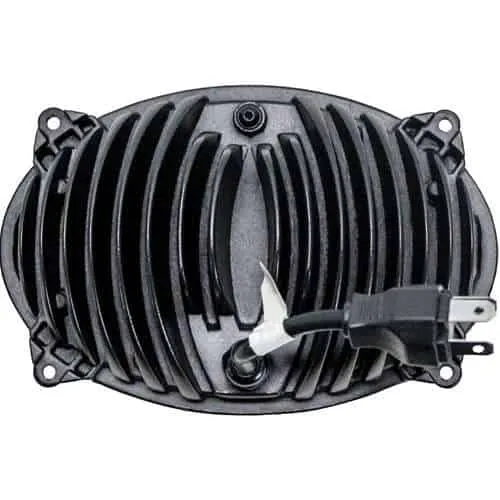

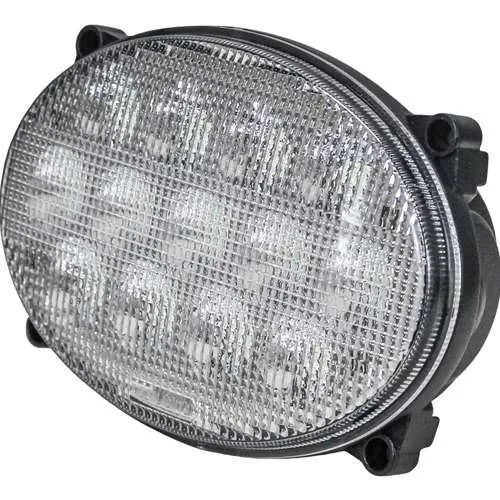

LED Oval Headlight fits into the hood of John Deere Tractors. This light will work for High/Low Beams and High Beams, Uses Original Mount and Wiring, Plug and Play.
Note: For John Deere Tractors 8120 thru 8530, this light will only fit the lower lights in the screen. For the main headlights use TL8520. For models 7630-7920 this will replace the main headlights.
Replaces OEM Part Number
John Deere: RE181963, RE181964, RE205360
Features:
- IP67 Waterproof
- EMC CISPR 25 Class 4
- E-mark, ECE R10, RoHS
- Swivel Mount
Spefications
Applications
Spefications
| Description | LED Oval Headlight | Wattage | 65 |
| Dimensions(WxHxD) | 7.12″x4.75″ x3″ | Voltage | 10-30V DC |
| Lumens | 5000 | Light Pattern | High low Beam |
| Amps | 5.4 | Warranty | 2 Years |
- Plug and Play
- Uses original mount and wiring
- This light will work for High/Low beams and High beams
- For John Deere Tractors 8120 thru 8530, this light will only fit the lower lights in the screen; For the main headlights use TL8520
- For models 7630-7920 this will replace the main headlights
Applications
Replaces Left-Hand or Right-Hand Front Inner or Lower Grille Screen Hood Light on John Deere® 7020 and 7030 Series Tractors:
- 7020 Series: 7720, 7820, 7920
- 7030 Series: 7630, 7730, 7830, 7930
Replaces Left-Hand or Right-Hand Lower Grille Screen Hood Light on John Deere® 8020, 8030 and 8R Series Tractors, and Sprayers:
- 8020 Series: 8120, 8220, 8320, 8420, 8520
- 8030 Series: 8130, 8230, 8330, 8330T, 8430, 8430T, 8530
- 8R Series (Early Series Before 2013): 8245R, 8270R, 8295R, 8320R, 8345R
- Sprayers: 4720, 4730, 4830
Replaces John Deere® Part Numbers: RE181963, RE181964, RE205360
