John Deere Generation-3050 Series LED Rear White/Red Tail Light

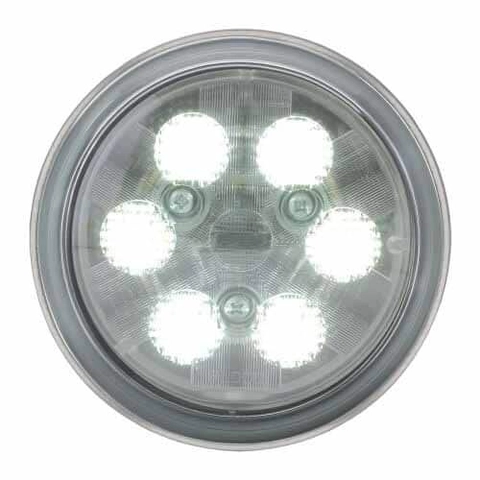

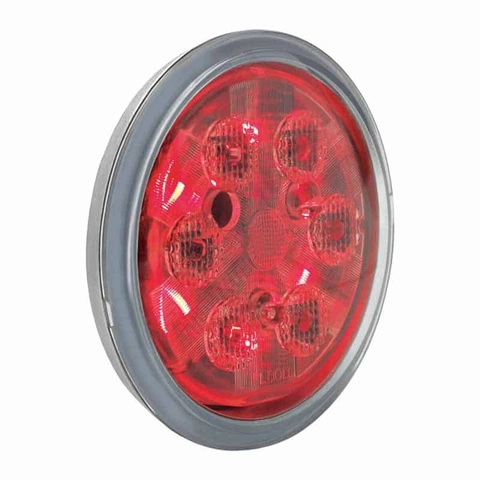

The TL3005 is a sealed light for the rear work light on John Deere tractors that have a red tail light option. Light has white work light and red tail light built in together. Uses original mount and wiring connection, Plug and Play. Replaces OEM Part Number: ELJ50-0015, AR77324, AR21737, AR21739
Note: Will not work on positive ground tractors.
Features:
- IP67 Waterproof
- EMC CISPR 25 Class 4
- E-mark, ECE R10, RoHS
Spefications
Applications
Spefications
| Description | 24W LED Sealed Round Work Light w/Red Tail Light | Wattage | 24 |
| Dimensions(WxHxD) | 4.5″ diameter x1.5″ depth | Voltage | 10-30V DC |
| Lumens | 2200 | Light Pattern | Spot/Flood |
| Amps | 2 | Warranty | 2 Years |
- Uses original mount and wiring
- Sealed light for the rear work light on John Deere tractors that have a red tail light option
- White work light and red tail light built in together
- Will not work on positive ground tractors
Applications
John Deere® Generation II, New Generation, 10, 20, 30, 2040, 2050, 2055 and 3050 Series Utility Tractors:
- Utility Tractors: 920, 930, 1040, 1120, 1130, 1140, 1520, 1630, 1640, 1750, 1830, 1840, 1850, 1950, 1950N, 2040S, 2120, 2130, 2140, 3030, 3050, 3130, 3140, 4000
- Generation II Series: 1530, 2030, 2630, 6030
- New Generation Series: 1020, 2010, 2020, 5010, 5020
- 10 Series: 2510, 3010, 4010
- 20 Series: 2520, 3020, 4020, 4520, 4620
- 30 Series: 4320
- 2040 Series: 2040, 2240, 2440, 2640, 2840, 2940
- 2050 Series: 2150, 2250, 2350, 2450, 2550, 2650, 2750, 2850, 2950
- 2055 Series: 2155, 2255, 2355, 2355N, 2555, 2755, 2855N, 2955
- 3050 Series: 3350
Replaces John Deere® Part Numbers: ELJ50-0015, AR77324, AR21737, AR21739
