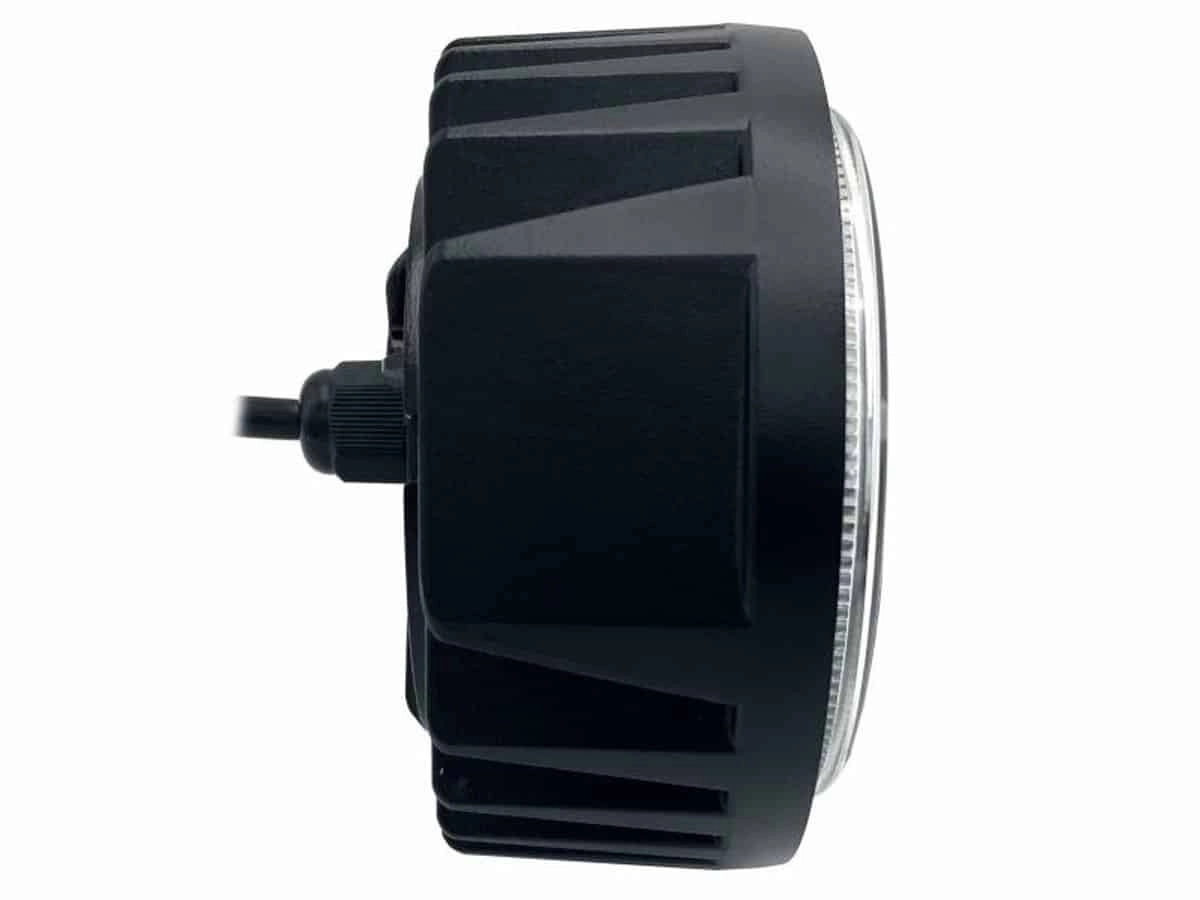

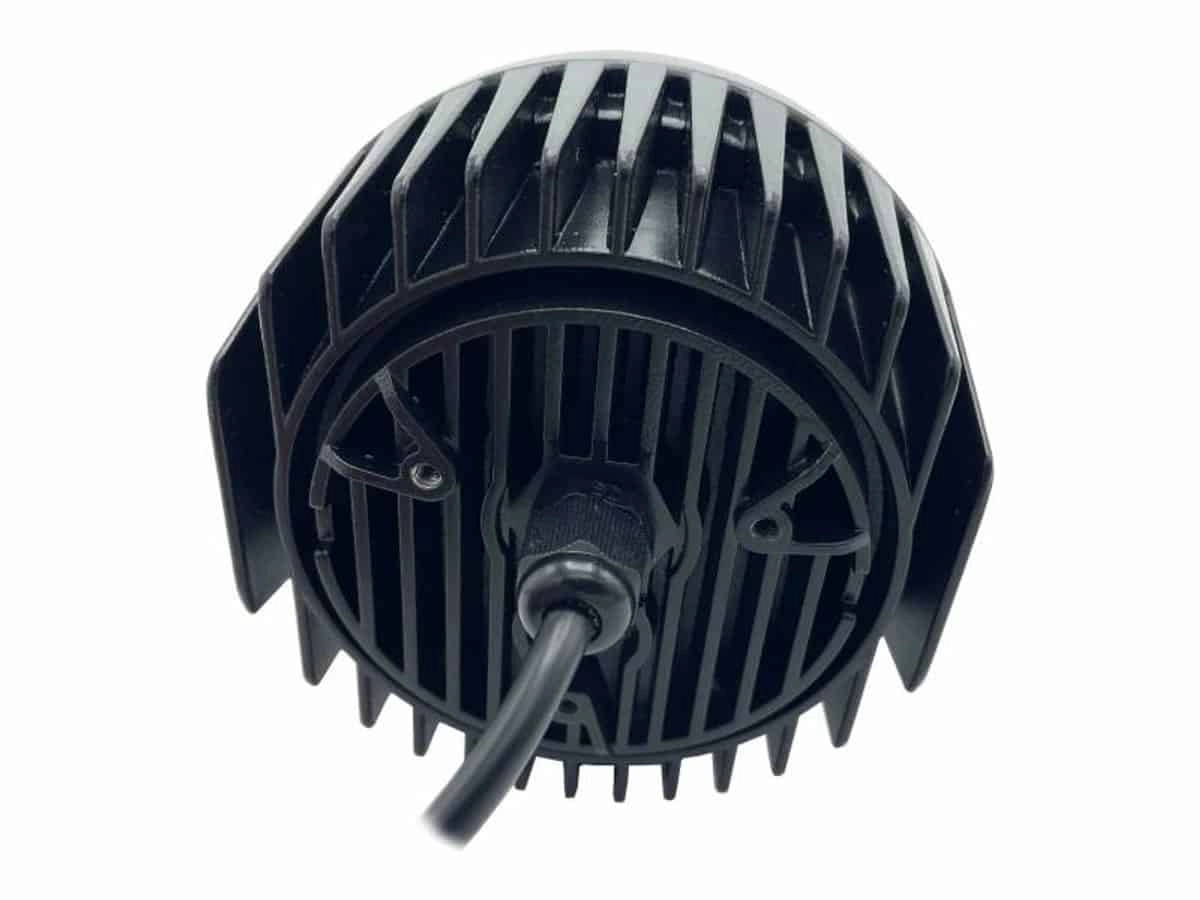

John Deere 6M-9RX Series LED Large Outer Hood Light Insert
Large round insert light for John Deere R series tractor. The TL8620 replaces the larger round reflector in the upper headlight. Uses original mounting bracket. Plug & play. This light does not replace the whole housing.
Replaces Large Light in OEM Part Numbers: AL206154, AL206153, RE288376, RE288377, RE296513, RE296514, RE296679, RE29680
Features:
- IP67 Waterproof
- EMC CISPR 25 Class 4
- E-mark, ECE R10, RoHS
Spefications
Applications
Spefications
| Description | LED Large Round Headlight Insert | Wattage | 30 |
| Dimensions(WxHxD) | 4.53″x4.53″ x1.93″ | Voltage | 10-30V DC |
| Lumens | 3000 | Light Pattern | Flood |
| Amps | 3.33 | Warranty | 2 Years |
- Plug and Play
- Uses original mount and wiring
- Large round insert light for John Deere R series tractor
- Replaces the larger round reflector in the upper headlight
- This light does not replace the whole housing
Applications
Replaces Large Outer Hood Light Insert on John Deere® 6M, 6R, 7R, 8R, 8RT, 9R, 9RT and 9RX Series Tractors and Sprayers:
- 6M Series: 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M
- 6R Series: 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6155RH, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230R, 6250R
- 7R Series: 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 7R 210, 7R 230, 7R 250, 7R 270, 7R 290, 7R 310, 7R 330, 7R 350
- 8R Series: 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8320R, 8335R, 8345R, 8360R, 8370R, 8400R
- 8RT Series: 8310RT, 8320RT, 8335RT, 8345RT, 8360RT, 8370RT
- 9R Series: 9360R, 9370R, 9410R, 9420R, 9460R, 9470R, 9510R, 9520R, 9560R, 9570R, 9620R
- 9RT Series: 9460RT, 9470RT, 9510RT, 9520RT, 9560RT, 9570RT
- 9RX Series: 9420RX, 9470RX, 9520RX, 9570RX, 9620RX
- Sprayers: R4023, R4030, R4038, R4040I, R4044, R4045, R4050I, R4060, R4140I, R4150I, 4940
Replaces John Deere® Part Numbers: AL206154, AL206153, RE288376, RE288377, RE296513, RE296514, RE296679, RE296680
