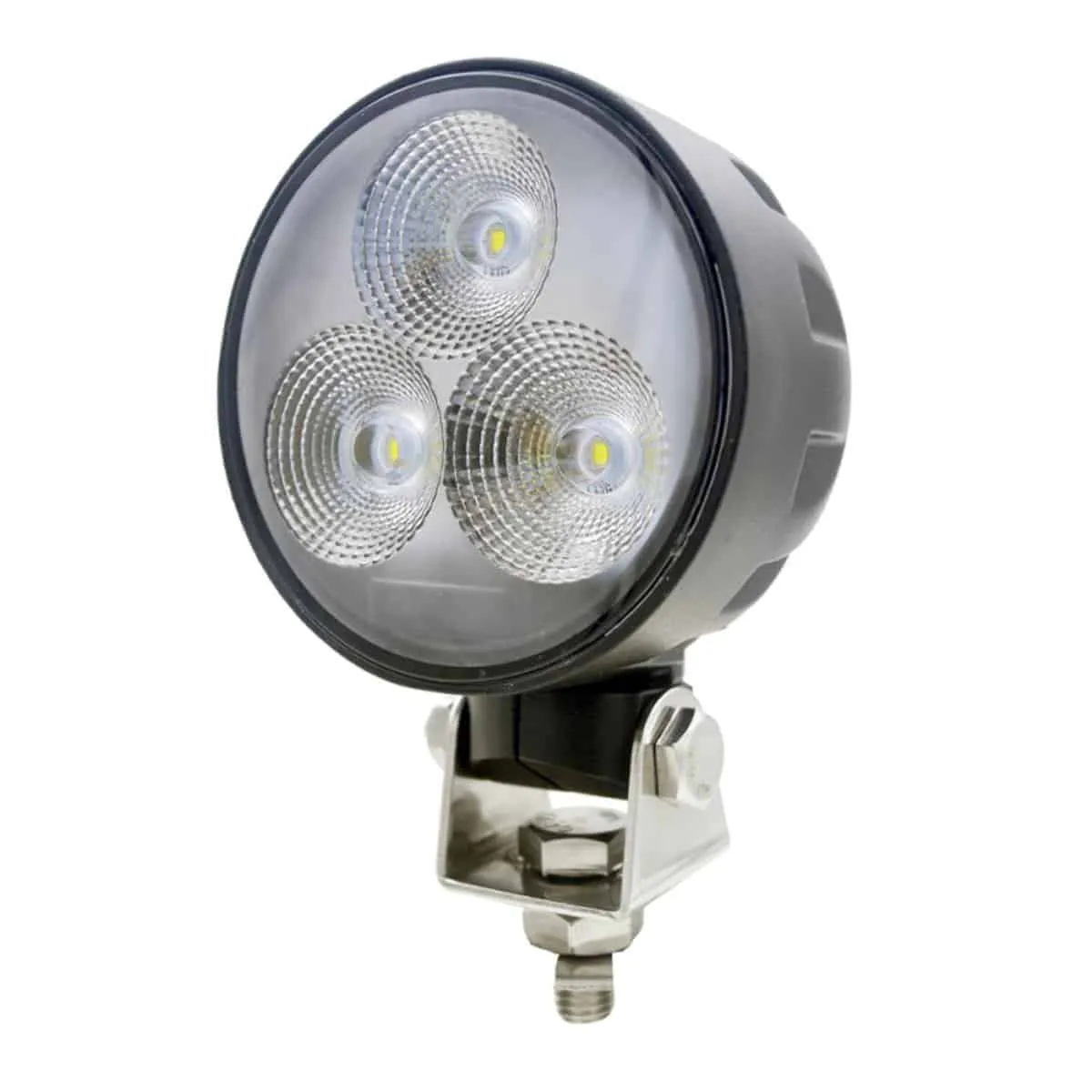

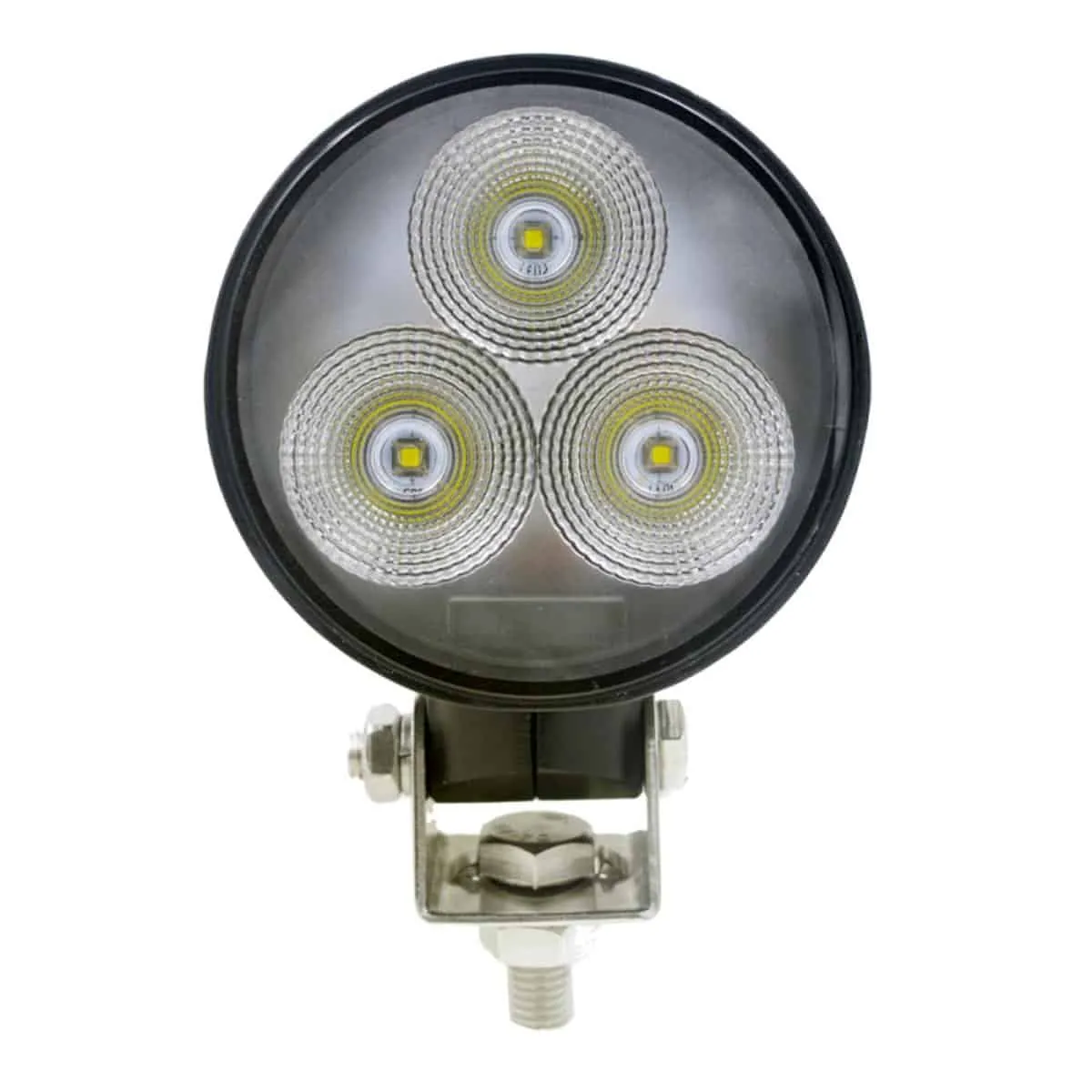

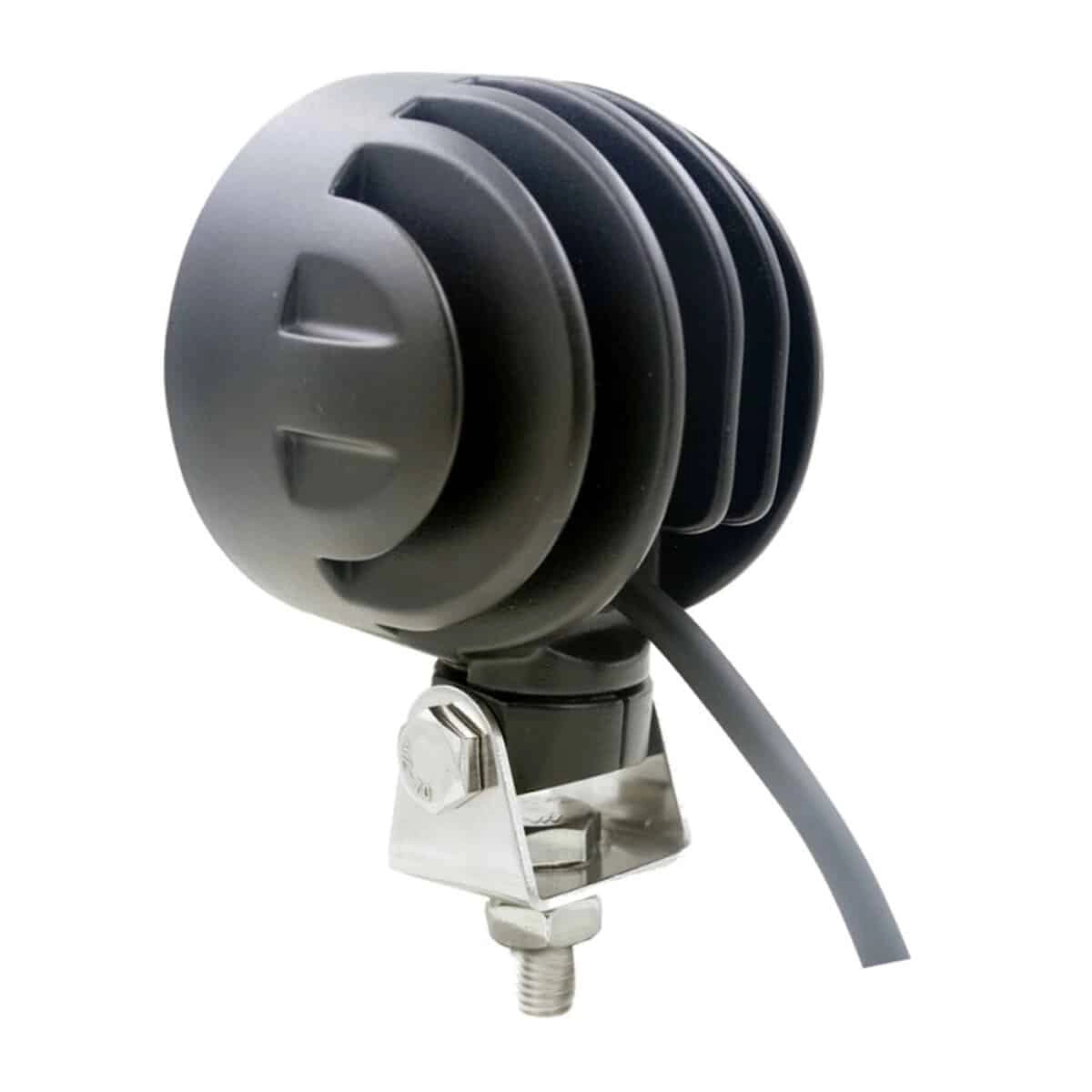

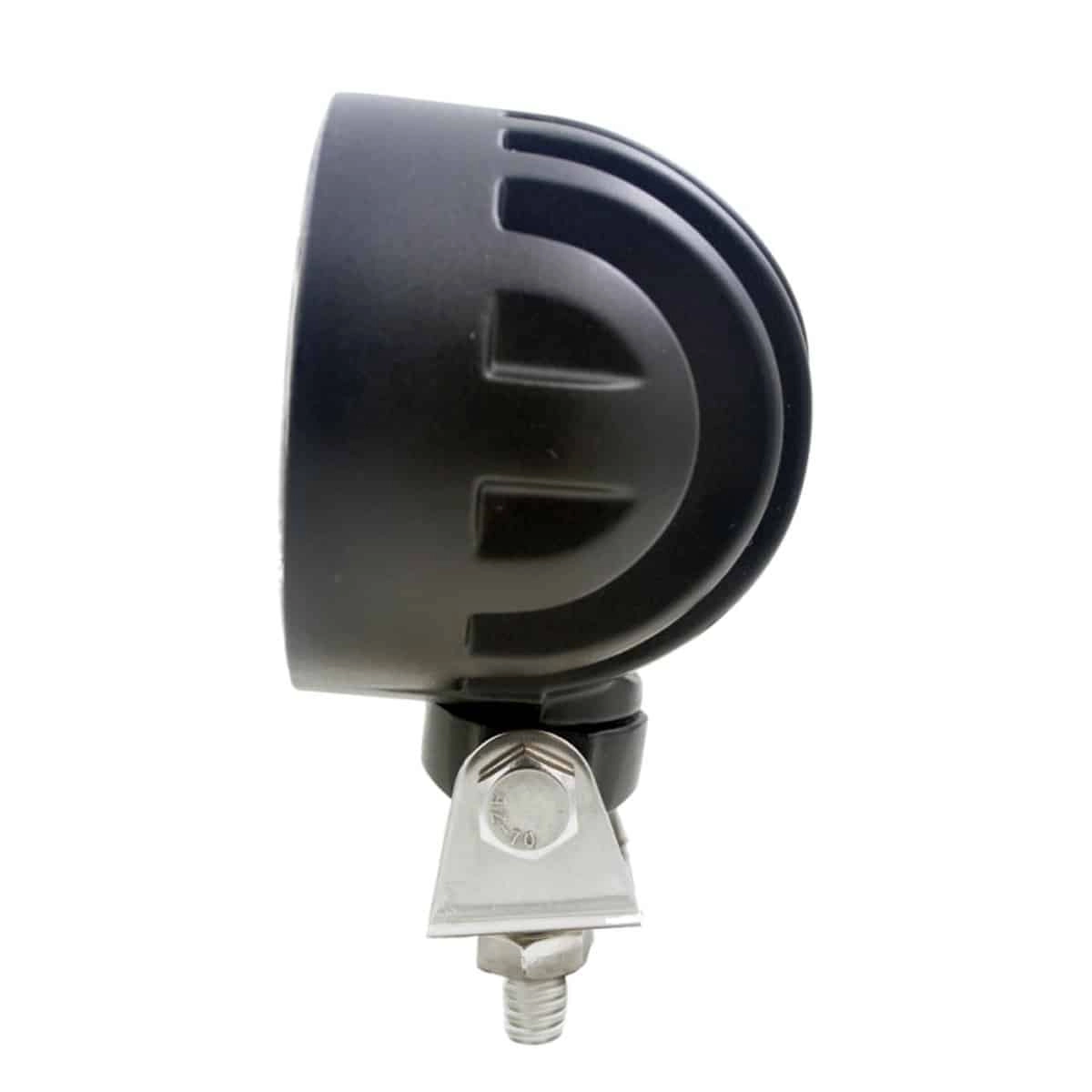

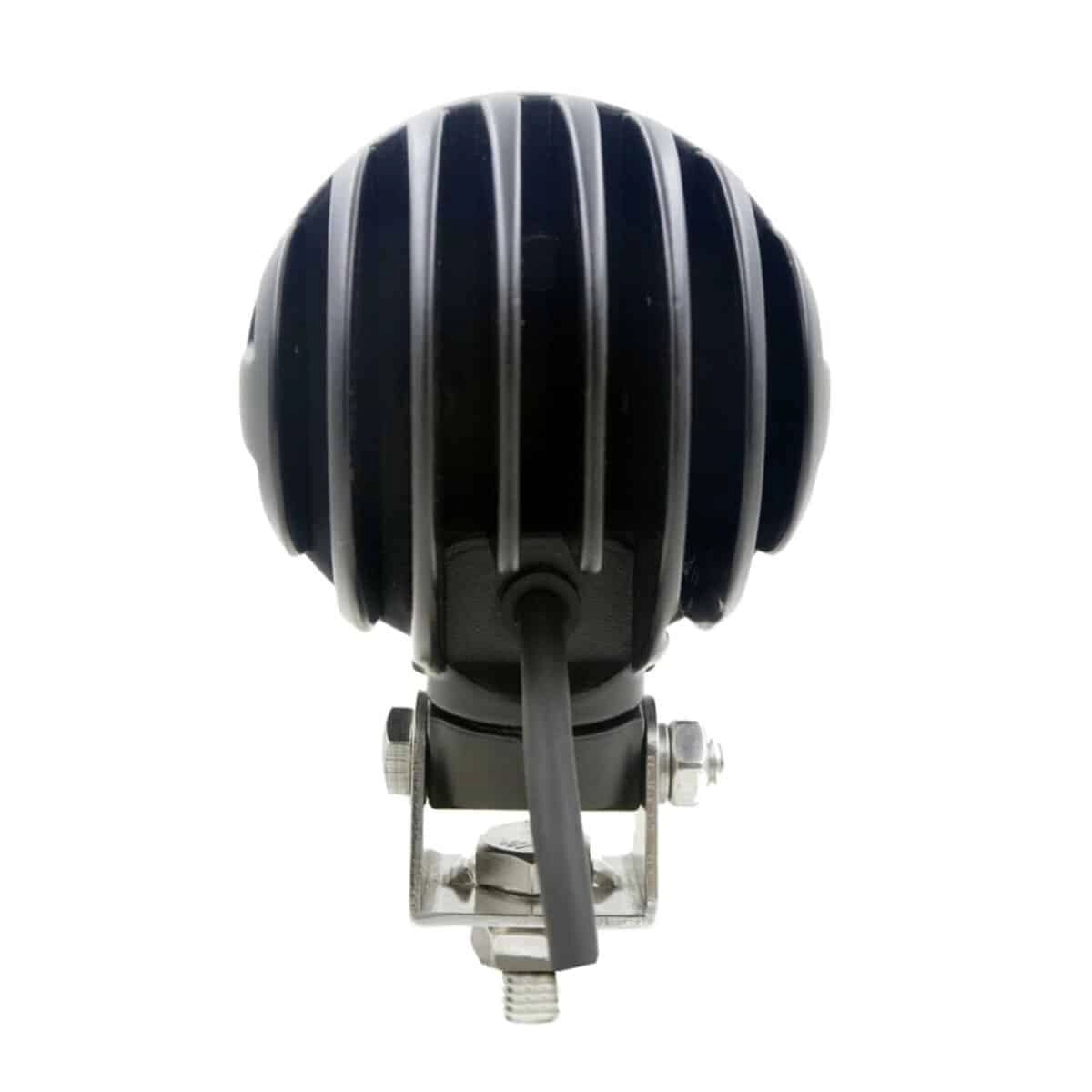

John Deere S-T-W Series Combine LED Upper Cab Light
Plug & Play bottom mount LED Light. Direct replacement.
Replaces Part Numbers:
John Deere: AXE20661
Features:
- IP67 Waterproof
- EMC CISPR 25 Class 4
- E-mark, ECE R10, RoHS
Spefications
Applications
Spefications
| Description | Round LED Headlight w/ Swivel Mount | Wattage | 40 |
| Dimensions(WxHxD) | 4.5″x3.34″ x2.85″ | Voltage | 10-30V DC |
| Lumens | 3200 | Light Pattern | Flood |
| Amps | 2.5 | Warranty | 2 Years |
- Plug and Play
- Direct replacement
Applications
John Deere® S, T and W Series Combines, Forage Harvesters, Sugar Cane Harvesters and Windrowers:
- S Series: S550, S650, S660, S670, S670HM, S680, S680HM, S690, S690HM, S760, S770, S780, S790
- T Series: T550, T560, T660, T670
- W Series: W540, W550, W650, W660
- Forage Harvesters: 8100, 8200, 8300, 8400, 8500, 8600, 8700, 8800
- Sugar Cane Harvesters: CH570, CH670
- Windrowers: W235 Draper, W235 Rotary, W260 Rotary
Replaces John Deere® Part Number: AXE20661
