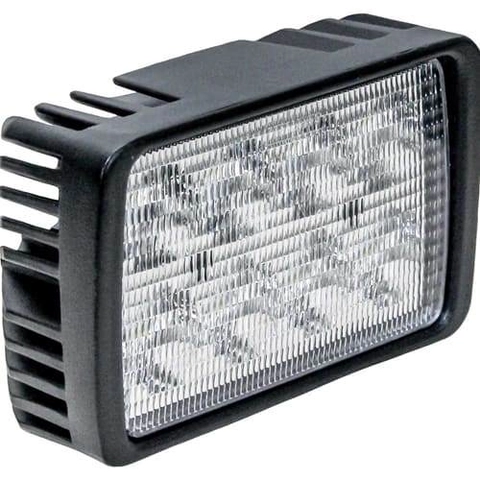

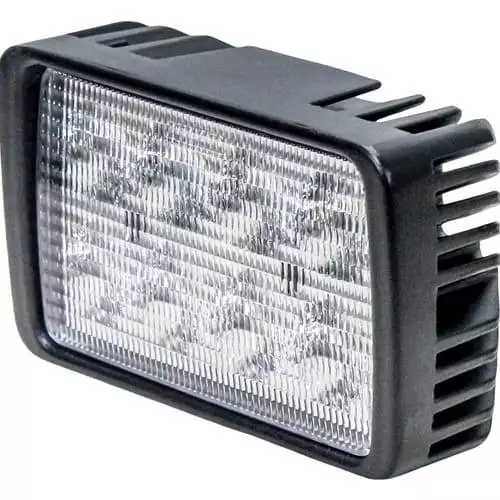

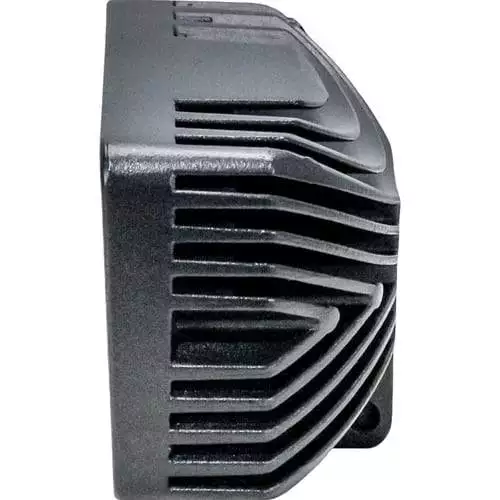

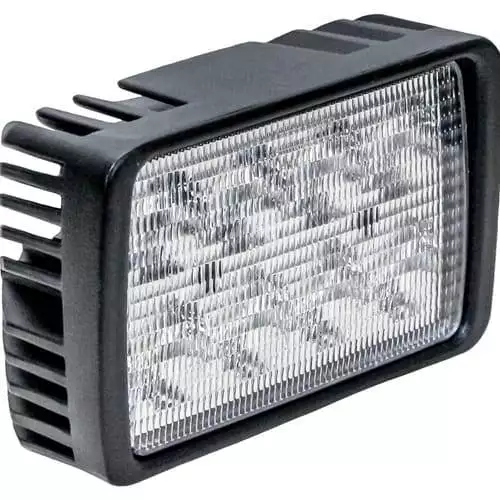

Case IH CX-Steiger/New Holland T8-TG Series LED Fender Light
Tiger Lights TL3085 Light

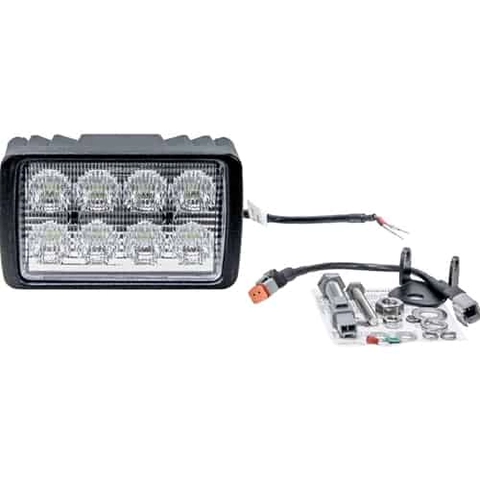

LED Fender Work Light. It comes with a hollow bolt to easily run the wire to hide under the fender. Uses original wiring, however, it will require to install the connector after running wires threw bolt. Includes: Deutsch Connector, Stainless Steel Hardware, Mounting Bracket.
Replaces OEM Part Numbers;
Case/IH: 20-1730T91
Features:
- IP67 Waterproof
- EMC CISPR 25 Class 4
- E-mark, ECE R10, RoHS
Spefications
Applications
Spefications
| Description | LED Fender Light w/Hollow Bolt | Wattage | 40 |
| Dimensions(WxHxD) | 6″ x 3.5″ x 3″ | Voltage | 10-30V DC |
| Lumens | 3600 | Light Pattern | Flood |
| Amps | 3.33 | Warranty | 2 Years |
- Uses original wiring, however, it will require to install the connector after running wires threw bolt
- Comes with a hollow bolt to easily run the wire to hide under the fender
- Includes Deutsch connector, stainless steel hardware and mounting bracket
Applications
Case IH® CX, Magnum, MX, MX Series Maxxum and Steiger® 9100-9300 Series Tractors:
- CX Series: CX50, CX60, CX70, CX80, CX90, CX100
- Magnum Series: Magnum 215, Magnum 235, Magnum 245, Magnum 255, Magnum 275, Magnum 305, Magnum 335
- MX Series: MX80C, MX90C, MX100C
- MX Series Maxxum: MX100, MX110, MX120, MX135, MX150, MX170, MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX245, MX255, MX270, MX275, MX285, MX305
- Steiger® 9100 Series: 9110, 9130, 9150, 9170, 9180
- Steiger® 9200 Series: 9210, 9230, 9240, 9260, 9270, 9280
- Steiger® 9300 Series: 9310, 9330, 9350, 9370, 9380, 9390
Replaces Case IH® Part Number: 20-1730T91
New Holland® T8, T8000, TG and TG II Series Tractors:
- T8 Series: T8.275, T8.300, T8.320, T8.330, T8.350, T8.360, T8.380, T8.390, T8.410, T8.420, T8.435
- T8000 Series: T8010, T8020, T8030, T8040, T8050
- TG Series: TG210, TG230, TG255, TG285
- TG II Series: TG215, TG245, TG275, TG305
