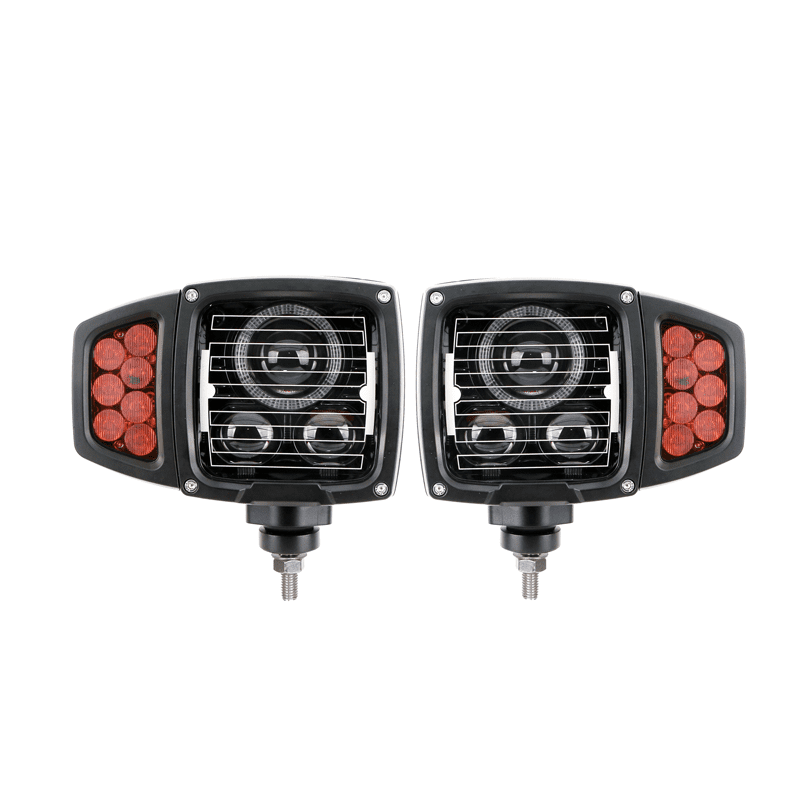

ECE Approved Combination Heavy Duty Heated LED Plow Headlights
In climates where snow and ice can dangerously impair visibility, Tough’s LED Heated Snow Plow Lamps are ideal as cold weather supplemental lighting or as road-legal driving lights when the vehicle’s headlights are obstructed. These lamps automatically prevent snow and ice buildup with a sensor that monitors the lens and activates an internal heating element when its temperature falls too low. Designed for the tough conditions facing plow operators, the LED Heated Snow Plow Lamps can be mounted on tractors, ATVs, and other vehicles that operate in wintery conditions. Integrated sensor detects temperature of lens to activate heating element Die-cast aluminum housing and heavy-duty lens are ideal for the harshest environments Built to resist hours of continuous 6G vibration Versatile, multi-volt design features reverse voltage protection
Key Features
Sealed & Weatherproof
Sealed housing built to keep out water, dust, and the elements.
Multi-Volt Input
Runs on both 12V and 24V systems without a converter — one light for a mixed fleet.
Vibration-Resistant
Potted driver and shock-dampening bracket absorb continuous machine vibration.
OEM / ODM Available
Custom voltage, bracket, beam angle, and private-label branding available.
| Functions | Low Beam, High Beam, Turn,Side DI, Parking |
| Homologation | DOT FMVSS 108/SAE J914/ SAE J588/ SAE J222 |
| LED Type | Ordinary LED / OSRAM LED (optional) |
| Emitting color | White and Amber (Turn) |
| Color Temp Color temperature, measured in kelvin (K), describes the tint of white light: around 3000 K is warm (yellowish), 5000–5700 K is neutral daylight white, 6000–6500 K is cool white. Most machinery LED work lights ship at 5700–6500 K. Learn more → | White:5700K-6500k Amber:1600-1800K (Turn) |
| Energy Consumption(Tested) | Low Beam 30W;High Beam 60W; DRL 12W; Turn Signal Light 12W |
| Current Draw @ 12V: | Low Beam 2.5A; High Beam 5A; DRL 1A; Turn Light 1A |
| De-icing A heated-lens LED light has a transparent heating element laminated onto the lens that melts snow and ice — solving the problem that efficient LEDs, unlike halogens, produce too little waste heat to keep their own lens clear. Learn more → | No |
| EMC Grade CISPR 25 is the international standard limiting electromagnetic interference (EMI) from electrical devices installed on vehicles. A Class 3–5 rated lamp will not disturb radios, GPS guidance or telematics in the cab. Learn more → | CISPR 25 Class 3 |
| Operating Voltage A multi-volt lamp accepts any supply from roughly 9 to 32 volts DC, so the same part number runs on 12 V systems (pickups, utility tractors) and 24 V systems (trucks, excavators, mining equipment) without a converter. Learn more → | 10~30VDC |
| Connector | 6 pin DT /AMP /Cable (optional) |
| Size | 229X173X106mm |
| Housing Material | Aluminium Alloy |
| Lens Material | Anti-UV PC |
| Lens Process | Surface Hardened |
| Bracket Material | Stainless Steel |
| PC Brand | COVESTRO 2407 |
| Anti-Corrosion | ISO 9227 240H |
| IP Rate An IP (Ingress Protection) rating is a two-digit code defined by IEC 60529 that specifies how well an enclosure resists dust (first digit) and water (second digit). IP69K is the highest rating, covering high-pressure, high-temperature wash-down. Learn more → | IP66, IP6K9K |
| Work Temp | 40~+50°C |
| Life Time | >30,000h |
Certifications & Compliance
Frequently Asked Questions
What is the minimum order quantity?
Standard MOQ is 60 pieces. Sample orders of 1-5 units are available for evaluation at full unit price plus courier cost.
Can you build custom voltage or bracket specifications?
Yes. OEM/ODM customisation is available for voltage range, bracket design, beam angle, housing colour, and private label branding. Contact us with your specifications and we will confirm feasibility and lead time.
What certifications do your products carry?
Standard products carry CE, RoHS, and E-Mark. IP69K testing is performed in-house per IEC 60529. FCC Part 15B and additional market-specific certifications are available on request.
What is the warranty and how do I make a claim?
All products carry a 5-year warranty covering manufacturing defects. To make a claim, email our after-sales team with your order number and photos of the defective unit. We replace faulty units or issue credit notes, depending on your preference.
How long does production and shipping take?
In-stock samples ship within 3-5 days. Standard production runs take 15-25 working days after deposit, plus transit time by sea, air, or express — we will recommend the best option for your quantity and destination. Send us your order size and port, and we'll confirm the exact lead time with your quote.
How do we choose beam patterns and wattages for our machines?
As a rule of thumb, spot beams throw light far ahead for driving and boom work, while flood beams cover the working area around the machine; 40-100W suits cab and implement mounting, and 100W+ covers large areas. Not sure? Send us your equipment model and where you plan to mount the lights — our engineers will suggest a complete layout free of charge.
